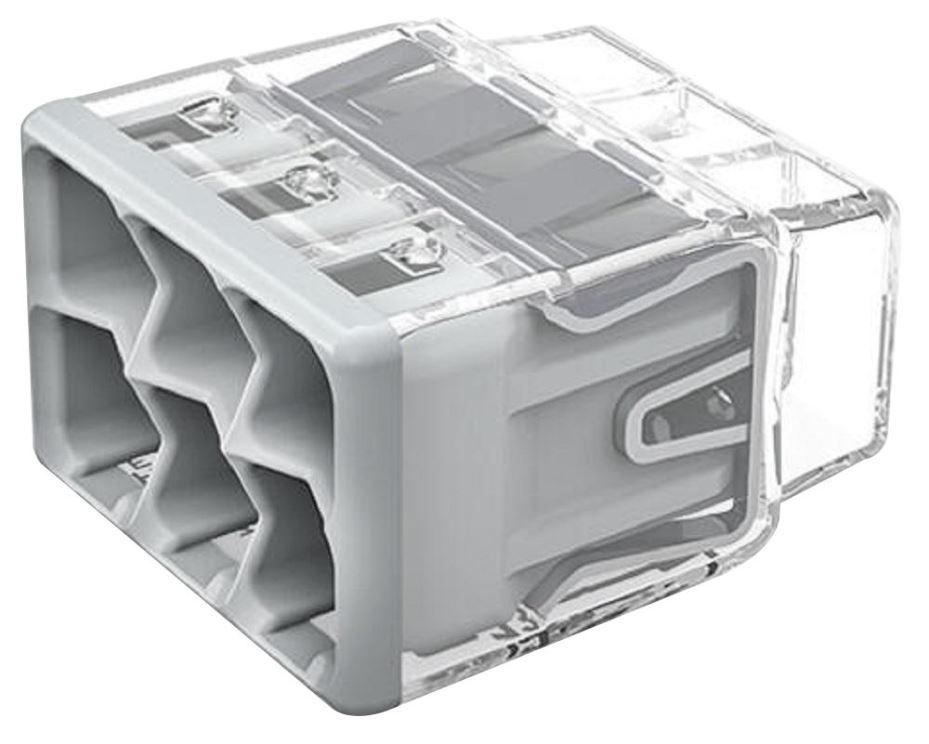

WAGO 6 Way PUSH WIRE® Splice Connector, 4mm, Grey
Reliable WAGO 6 Way PUSH WIRE® splice connector, supporting 0.75-4mm² wires. 450V, 32A, compact design.
The WAGO 2773-406 6 Way PUSH WIRE® Splice Connector offers reliable and quick push-in termination for up to six conductors. Designed for efficiency, it supports both solid (0.75mm² to 4mm²) and stranded (1.5mm² to 4mm²) wires, making it versatile for various electrical installations.
Featuring copper-plated contacts, this connector ensures excellent conductivity and long-term reliability. With a nominal voltage of 450V and a rated current of 32A, it is suitable for a wide range of applications in both residential and commercial settings.
The compact dimensions (18.6x16.4x11.3mm) allow for space-saving installations, while the grey colour blends discreetly into most environments. Part of the 2773 Series, this connector is a trusted solution for secure and maintenance-free wire connections.
Key Features
- Push-in termination for quick and easy installation
- Copper-plated contacts for superior conductivity
- Rated for 450V and 32A
- Compact design for space efficiency
- Reliable performance with minimal maintenance
- Electrical wiring installations
- Residential and commercial electrical systems
- Maintenance-free wire connections
- Compact installations
- Wire Size (Solid): 0.75mm² to 4mm²
- Wire Size (Stranded): 1.5mm² to 4mm²
- Nominal Voltage: 450V
- Rated Current: 32A
- Dimensions (LxWxH): 18.6x16.4x11.3mm
- Product Range: 2773 Series
- No. of Contacts: 6
- Connector Type: Push In
- Connector Mounting: Cable Mount
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 20AWG
- Contact Plating: Copper Plated Contacts
- Contact Material: Copper
- Weight: 900g
