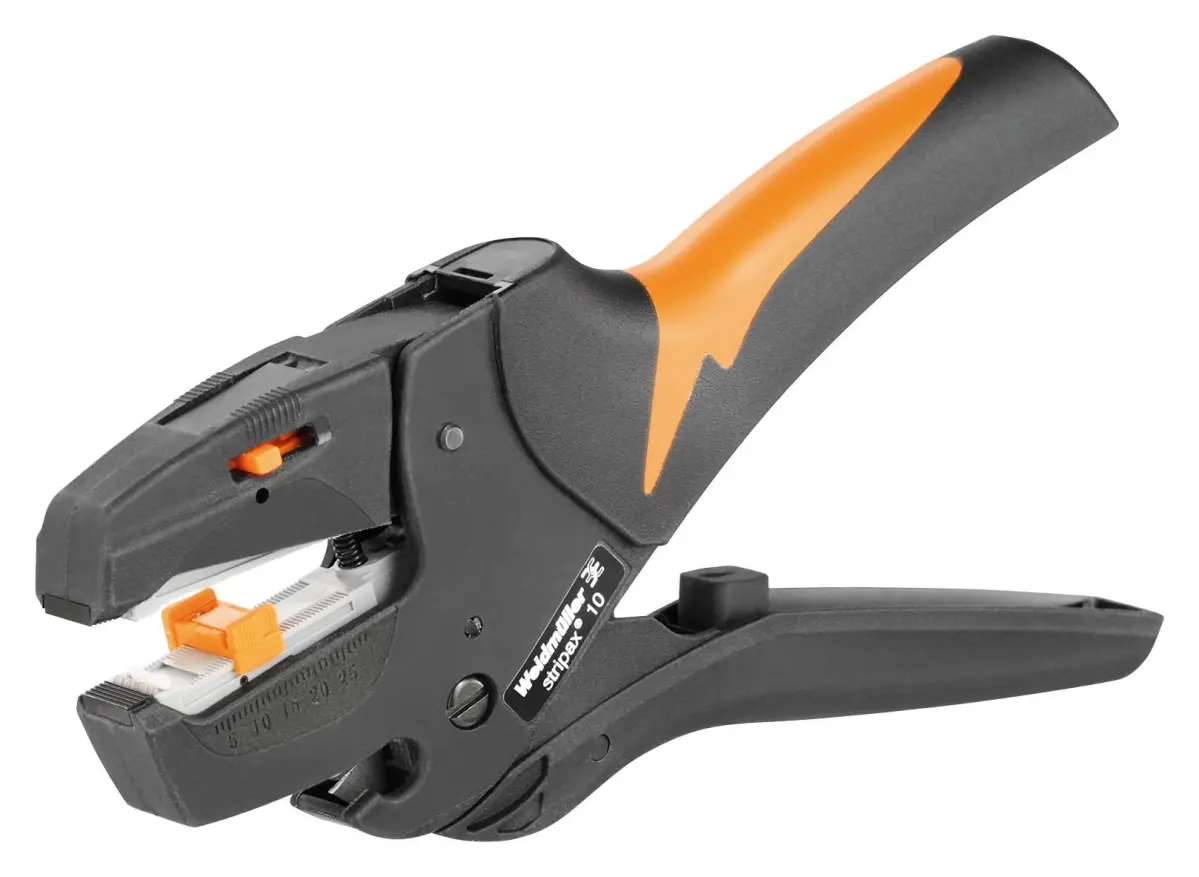

WEIDMULLER STRIPAX Wire Strippers, 28AWG to 7AWG

The WEIDMULLER STRIPAX Wire Strippers are a professional-grade, self-adjusting stripping and cutting tool designed for precision and efficiency. Featuring automatic self-adjustment, it handles both flexible and solid conductors with PVC insulation seamlessly. The tool's clamping jaws open automatically after stripping, facilitating a smooth workflow and reducing hand fatigue during repetitive tasks.

With an adjustable end stop, you can set the precise stripping length up to a maximum of 25mm, ensuring consistent results every time. A significant advantage is its ability to process double-insulated cables in just two steps without requiring any special adjustments, making complex tasks straightforward.

Engineered for durability and user comfort, it boasts an optimised ergonomic design for extended use. The self-adjusting cutting unit has no play, guaranteeing clean, precise cuts and strips without fanning out individual conductors. Its robust construction is built for a long service life in demanding industrial environments.

Ideal Applications

This versatile tool is perfectly suited for a wide range of technical and industrial sectors. Its reliability makes it a top choice for mechanical and plant engineering, railway systems, wind energy projects, and robotics. It also meets the rigorous demands of explosion protection zones as well as marine, offshore, and shipbuilding applications.

Key Specifications

• Stripping Capacity (AWG): 28AWG to 7AWG
• Stripping Capacity (Metric): 0.08mm² to 10mm²
• Maximum Stripping Length: 25mm
• Conductor Type: Suitable for flexible and solid conductors
• Insulation Type: PVC
• Special Feature: Automatic jaw opening post-strip
• Special Feature: Processes double-insulated cables in two steps
• Design: Ergonomic, double-insulated handles
• Length: 7.48 inches (190mm)
