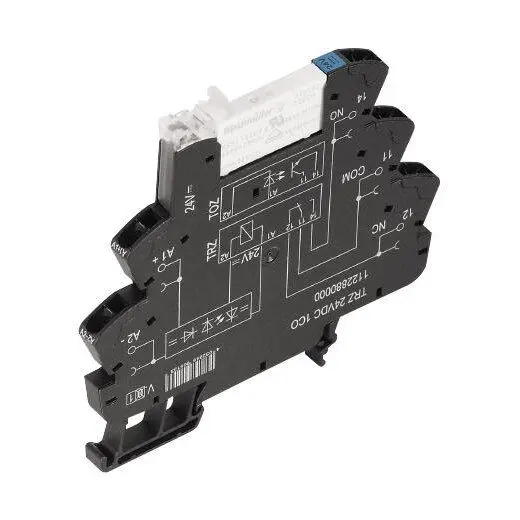

Weidmüller TERM Series SPDT Power Relay 24V DC 6A

The Weidmüller TERM Series Multi-Voltage Relay is an innovative and versatile pluggable electromechanical component designed for reliable control in industrial environments. This solid-state relay module is engineered for efficient switching with its slim 6.4mm profile, allowing for high-density installations on DIN rails. It features a single changeover (SPDT) contact with silver nickel (AgNi) material, capable of reliably switching loads up to 6A continuously at 250V AC or DC, with a robust 20A inrush capability for 20ms.

A key innovation is the unique multi-voltage input option, which allows conditioning signals from 24V up to 230V AC/DC using a single module, offering exceptional application flexibility. The design incorporates tension clamp terminals that support a wide range of conductor sizes from 0.14mm² to 2.5mm² (26 AWG to 14 AWG), ensuring secure and straightforward wiring. An integrated green LED provides clear status indication at a glance, while a free-wheel diode offers reverse polarity protection for enhanced circuit safety.

Built for durability, the relay boasts a mechanical service life of 5 million switching cycles and operates reliably across a wide temperature range from -40°C to +60°C. Its construction includes an illuminated ejection lever for easy module removal and features an IP20 protection rating. The module is fully compatible with other TERM Series components, allowing for seamless combination and jumpering with cross connectors. Well-considered accessories, such as isolation plates for signal grouping or adding labels, complete this well-rounded industrial offering.
