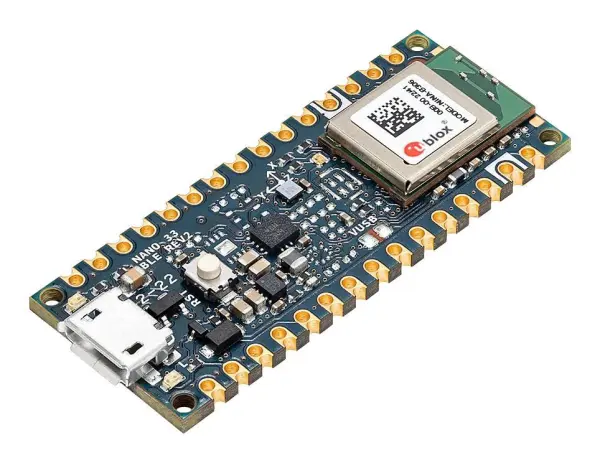

Arduino Nano 33 BLE Rev2 Development Board, No Headers

The Arduino Nano 33 BLE Rev2 is a cutting-edge development board powered by the nRF52840 from Nordic Semiconductors. With a 32-bit Arm® Cortex®-M4 CPU running at 64MHz, this board provides Bluetooth® LE connectivity for seamless wireless communication with other Bluetooth® LE-enabled devices. It also supports MicroPython, offering enhanced programming flexibility for developers of all skill levels.

Designed with versatility in mind, the Nano 33 BLE Rev2 features a built-in 9-axis Inertial Measurement Unit (IMU), delivering precise measurements of position, direction, and acceleration. Whether you are developing wearables, motion-tracking devices, or smart sensors, the onboard IMU ensures exceptional accuracy and reliability in real-time applications.

Key Specifications

• Microcontroller: Nordic Semiconductor nRF52840 (ARM Cortex-M4F)
• CPU Speed: 64 MHz
• Flash Memory: 1 MB
• SRAM: 256 KB
• Input Voltage (nominal): 5-18 V DC
• I/O Voltage: 3.3 V
• DC Current per I/O Pin: 10 mA
• Digital I/O Pins: 14
• Analogue Input Pins: 8
• PWM Pins: Not specified
• Communication: UART, I2C, SPI, Bluetooth® LE
• Onboard LEDs: 13 built-in
• IMU: 9-axis (accelerometer, gyroscope, magnetometer)
• Dimensions (W x L): 18 mm x 45 mm
• Weight: 18 grams
• Board Height: 43 mm (including pins/headers? or overall?)
• Header: No headers included (bare board)

What's in the Box

• Arduino Nano 33 BLE Rev2 board (without headers)

This compact and powerful board is perfect for IoT projects, wearable devices, and advanced robotics, offering a complete solution in a small form factor. Its low power consumption and robust feature set make it a top choice for professionals and hobbyists alike.
