Arduino Portenta Mid Carrier Development Board
Arduino Portenta Mid Carrier: Ethernet, CAN, camera, debug, mini PCIe. For H7, C33, X8. IoT, vision, robotics.

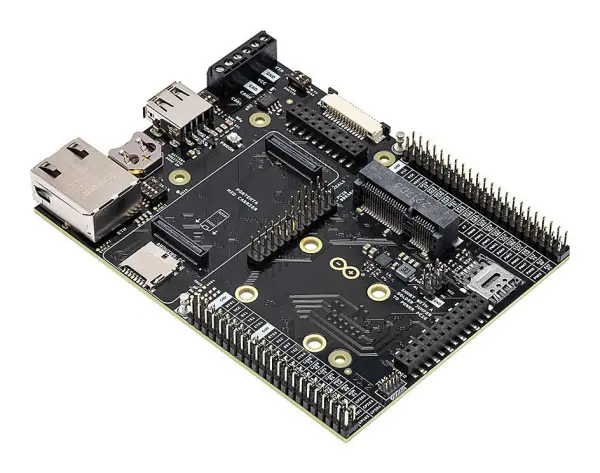

The Arduino Portenta Mid Carrier (ASX00055) is a versatile development board designed to streamline projects using Portenta SOMs. It offers easy access to high-density signals through dedicated headers, making it ideal for a wide range of applications, from Internet of Things (IoT) to advanced automation.
This carrier board is compatible with the Portenta C33, H7, and X8 boards, providing a flexible platform for your innovations. It includes an RJ45 Ethernet connector and a USB-A 2.0 female connector for reliable data logging. For camera integration, it features a MIPI camera connector and a digital video port (DVP) interface. Onboard JTAG/SWD debug connector and a CR1225 battery socket for real-time clock (RTC) backup ease the development process. The mini PCIe connector enables quick testing of cellular connectivity, ensuring reliable data transmission in areas with scarce Wi-Fi® coverage.
Key Features:
- Two CAN bus lines for robust industrial communication
- Ethernet, microSD, and USB connectivity options
- MIPI camera and DVP interfaces for vision applications
- Onboard JTAG/SWD debug connector
- CR1225 battery socket for RTC backup
- Mini PCIe connector for cellular module testing
- Operating temperature range from -40°C to +85°C
- Dimensions: 114mm x 86.5mm
This carrier board is a vital tool for efficiently creating innovative, connected devices, whether for asset tracking, machine vision, robotics, or automation projects. Its robust design and comprehensive interface support make it a valuable addition to any developer's toolkit.
