ATMEL ATMEGA128-16AU 8-Bit AVR Microcontroller, 128KB Flash, 16MHz, TQFP64

The ATMEL ATMEGA128-16AU is a high-performance, low-power 8-bit AVR RISC-based microcontroller. It combines a substantial 128KB of program memory with 4KB of EEPROM and 4KB of RAM, providing ample space for complex firmware and data storage. An integrated 8-channel 10-bit A/D converter allows for precise analogue signal measurement, while the JTAG interface (IEEE 1149.1 compliant) facilitates powerful on-chip debugging and programming.

This device excels in efficiency, executing instructions in a single clock cycle to achieve throughputs approaching 1 MIPS per MHz. It supports a maximum throughput of 16 MIPS at 16MHz, effectively balancing processing speed with controlled power consumption. Operating from a 4.5V to 5.5V supply, it is designed for robust performance across a wide temperature range from -40°C to 85°C.

Key Features

• Advanced RISC Architecture: For high-performance, efficient processing.
• High Endurance Non-volatile Memory: Ensures reliable data retention.
• QTouch® Library Support: Enables easy implementation of capacitive touch interfaces.
• Comprehensive Power Management: Features multiple sleep modes (Idle, ADC Noise Reduction, Power-save, Power-down, Standby) to minimise energy use in standby applications.
• Flexible Clocking: Software-selectable clock frequency and an internal calibrated RC oscillator.
• Robust System Control: Includes power-on reset, programmable brown-out detection, and global pull-up disable.
• Rich Peripheral Set: Offers 53 I/O pins and interfaces including I2C, SPI, and UART for extensive connectivity.
• Legacy Compatibility: Features an ATmega103 compatibility mode selectable by a fuse.

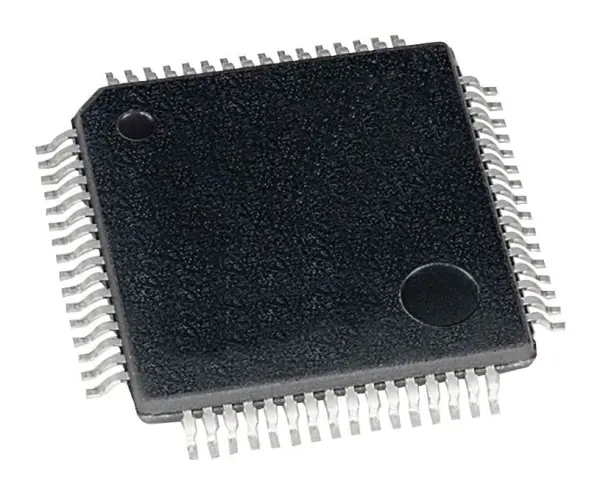

Supplied in a compact 64-pin TQFP package, this microcontroller is an ideal core component for demanding embedded designs where processing power, connectivity, and energy efficiency are critical.
