Batronix BX32P BARLINO II USB Programmer for EPROM & EEPROM Chips

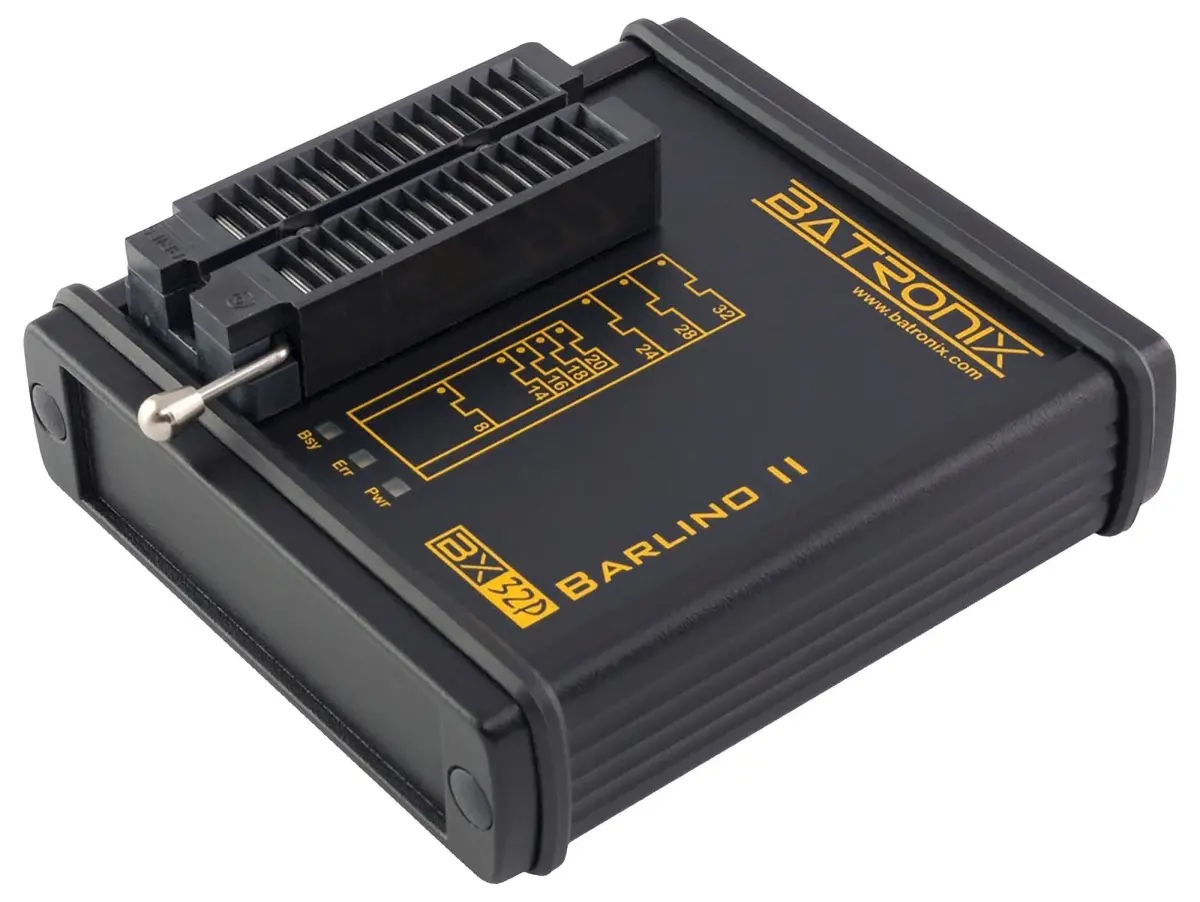

The Batronix BX32P BARLINO II is a USB programmer for EPROM and EEPROM chips, featuring a 32-pin ZIF socket for direct programming of DIP/DIL packages.

Overview

The BARLINO II is a universal programmer designed for a broad range of commonly used memory chips. It offers a flexible interface and fast programming algorithms, making it suitable for electronics development and embedded design. The unit is housed in an anodised die-cast aluminium enclosure with a stated height of 2.5 cm.

Power and Connectivity

The programmer draws all required power directly from a USB 2.0 port, so no external power adapter or batteries are needed. Internal voltage generators provide the programming voltages from the USB supply. The unit operates at USB 2.0 full-speed, 12 Mb/s.

Key Features

• Automatic chip identification
• Multi-programmer control
• Automatic programming start function
• Chip ID test function
• Low voltage support down to 3 V
• Doubled firmware memory for future firmware improvements and expanded chip support
• Improved pin driving for supplying and programming voltages compared to its predecessor
• More accurate setting of supply and programming voltages for target chips

Compatibility and Packages

Chips in DIP/DIL packages can be programmed directly in the 32-pin ZIF socket. Suitable adapters are available for PLCC, SOP, TSOP and QFP packages. The programmer handles a wide range of device families, from very old NMOS EPROMs to modern FLASH, LPC, FWH and Firmware Hub chips.

Weight

Product weight: 355 gm.

The Batronix BX32P BARLINO II is a practical choice for programming EPROM and EEPROM chips across multiple device families, with USB-powered operation and a 32-pin ZIF socket for DIP/DIL packages.
