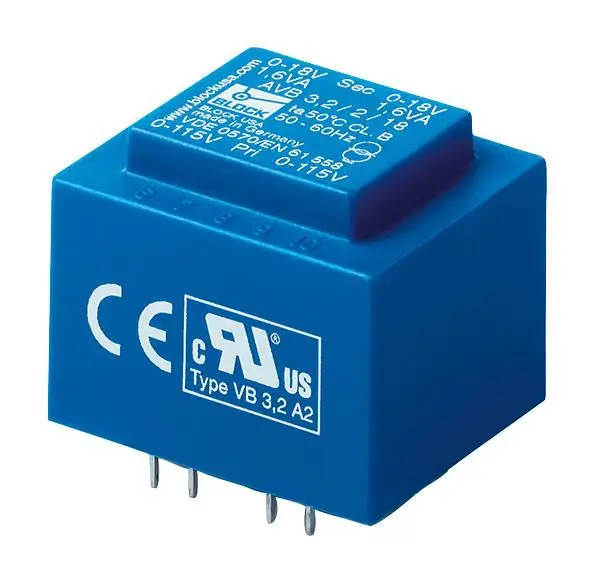

BLOCK AVB Series Encapsulated Safety Transformer, 2 x 9V, 3.2VA

The BLOCK AVB Series encapsulated safety isolating transformer provides secure electrical isolation between the input and output sides, making it an essential component for creating SELV and PELV circuits thanks to its limited output voltage. Designed to operate reliably in high ambient temperatures, this transformer delivers consistent performance even in demanding environments.

Engineered for efficiency, it is inherently short-circuit proof and achieves a minimum size while delivering a high output. The dual input and output voltages allow for flexible series or parallel connections, accommodating a variety of wiring configurations. Permanent corrosion protection, high insulation value, and maximum electrical reliability are ensured through XtraDenseFill resin encapsulation, while the self-extinguishing potting and hood material enhances safety.

Specifications

• Primary Voltage: 2 x 115V
• Secondary Voltage: 2 x 9V
• Power Rating: 3.2VA
• Frequency Range: 50Hz / 60Hz
• Current Rating: 177mA
• Winding Type: Dual Primary, Dual Secondary
• Transformer Mounting: Through Hole
• Product Range: AVB Series
• Weight: 60 grams
• Dimensions: 43mm (H) x 33mm (W) x 15mm (D)

Ideal for industrial and power management applications, this PCB transformer combines safety, reliability, and compact design to meet your electrical isolation needs.

Note: The isolation voltage specification is not available for this product.
