Bulgin Vandal Resistant Switch, SPST-NO, Momentary, 24V DC, 50mA, Amber

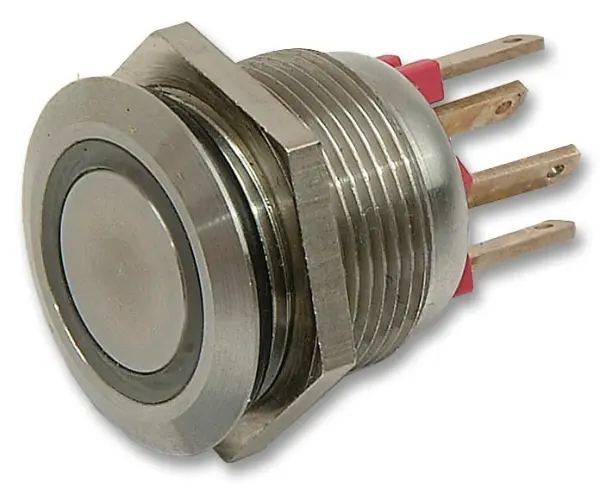

Introducing the Bulgin Vandal Resistant Switch, part of the MPI002 Series, designed for high-security applications where durability and reliability are essential. This switch features a flush pushbutton actuator with dot and ring illumination in a distinctive amber colour, ensuring clear visual status indication even in bright daylight thanks to its bright daylight LEDs.

Engineered to withstand harsh environments, this switch is front panel sealed to IP66 providing excellent protection against dust and water ingress. The marine grade stainless steel construction offers superior corrosion resistance, making it ideal for outdoor and marine applications. The switch operation is momentary with SPST-NO contact configuration, suitable for a wide range of control and signalling functions.

With a tactile feel for confident operation, this switch is styled to match other Bulgin vandal-resistant security switches, providing a cohesive and professional look. The 22mm diameter design fits standard panel cutouts, and the quick connect screw terminals or 2.8mm tabs facilitate easy and secure wiring. The switch supports 24V DC at a maximum current of 50mA, making it suitable for low-power electronic circuits.

Key Features

• Vandal-resistant construction for high-security areas
• IP66 front panel sealing for dust and water resistance
• Marine grade stainless steel for corrosion resistance
• Amber illumination for clear status indication
• Momentary operation with SPST-NO contact
• Tactile feedback for reliable activation

Specifications

• Series: MPI002
• Contact Configuration: SPST-NO
• Switch Operation: Momentary
• Actuator Style: Flush
• Contact Current DC Max: 50mA
• Contact Voltage DC: 24V
• IP Rating: IP66
