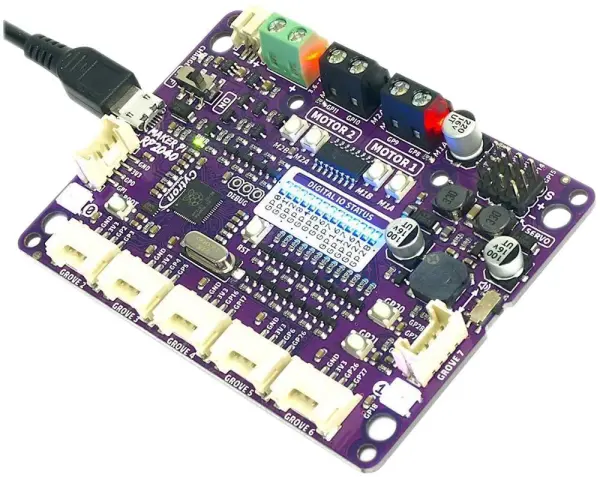

Cytron Maker Pi RP2040 Microcontroller Development Board
Cytron Maker Pi RP2040 robot controller with ARM Cortex M0+, DC motor driver, Grove connectors & CircuitPython. Ideal for robotics.
The Cytron Maker Pi RP2040 is a comprehensive robot controller board featuring an embedded RP2040 microcontroller. Designed for robotics and electronics projects, it integrates a 2-channel DC motor driver, 4 servo motor ports, and 7 Grove I/O connectors, making it straightforward to connect external sensors and components without complex wiring.
Powered by the Raspberry Pi RP2040 chip with an ARM Cortex M0+ processor running up to 133 MHz, this development board includes 264KB of RAM and 2MB of flash memory. It comes preloaded with CircuitPython, allowing users to start coding immediately. The board also features 13 status LEDs for GPIO pins, 2 Neopixel RGB LEDs, 2 push buttons, and a piezo buzzer for versatile input and output options.
Power management is highly flexible, offering automatic power selection between a Micro USB connection, a built-in LiPo/Li-ion charger, or a Vin input (3.6-6V). A built-in power on/off switch adds convenience to your projects. For easy mounting, the board is fitted with 4 x 4.8mm mounting holes and 6 x M3 screw holes.
Key Features & Specifications
- Embedded RP2040 microcontroller (ARM Cortex M0+ up to 133 MHz)
- 264KB RAM and 2MB flash memory
- Integrated DC motor driver (controls 2 DC motors or 1 stepper motor)
- 4x servo motor ports and 7x Grove I/O connectors
- 13x status LEDs for GPIO pins, 2x Neopixel RGB LEDs
- 2x push buttons and a piezo buzzer
- Micro USB for power and data
- Automatic power selection (USB, LiPo/Li-ion charger, or Vin 3.6-6V)
- Built-in power on/off switch
- Preloaded with CircuitPython
- Dimensions (HxWxD): 13 x 88 x 64 mm
- Weight: 60 grams
