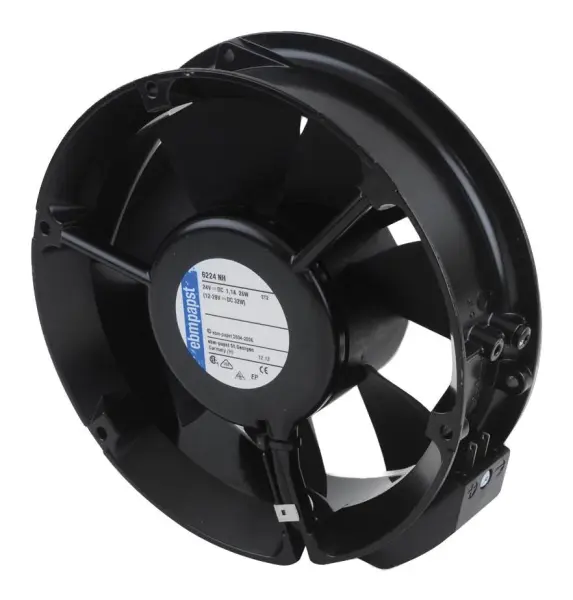

EBM-PAPST DC Axial Circular Fan, Ball Bearing, 24V, 172 x 172 x 51mm
EBM-PAPST 6200N series 24V DC axial fan, 172mm. Features ball bearing, 241.3 CFM airflow, and electronic blocking protection.
The EBM-PAPST DC Axial Circular Fan from the 6200N series is engineered for reliable performance, featuring an electronically commutated external rotor motor with fully integrated commutation electronics. This robust fan offers comprehensive electronic protection, including safeguards against reverse polarity and blocking, as well as motor current limitation during the start-up phase when the rotor is blocked.
Delivering an impressive airflow of 241.3 CFM (6.76 m³/min) at a rated speed of 3400 rpm, this fan operates with a power rating of 18W and generates a noise level of 55 dBA. It is designed with a durable metal fan housing and an impeller made from fibre glass reinforced plastic PA, ensuring longevity and stability. The air exhaust is directed over the shuts, and the rotational direction is counter-clockwise (CCW) when looking at the rotor.
Key Features & Specifications
- Supply Voltage: 24 VDC (12 to 28V voltage rating)
- Bearing Type: Ball bearing
- Fan Frame Size: 172mm (172 x 172 x 51mm dimensions)
- Airflow: 241.3 CFM / 6.76 m³/min
- Noise Rating: 55 dBA
- Power Rating: 18W
- Connection: Electrical connection via 2 flat pins 3 x 0.5mm
- Mounting: Mounting from either face using two 4.3mm holes
- Grounding: Housing with ground lug for screw M4 x 8 (TORX)
Weighing 720 grams, this axial fan is ideal for applications requiring consistent cooling and robust construction. It offers versatile installation options and reliable, electronically protected operation.
