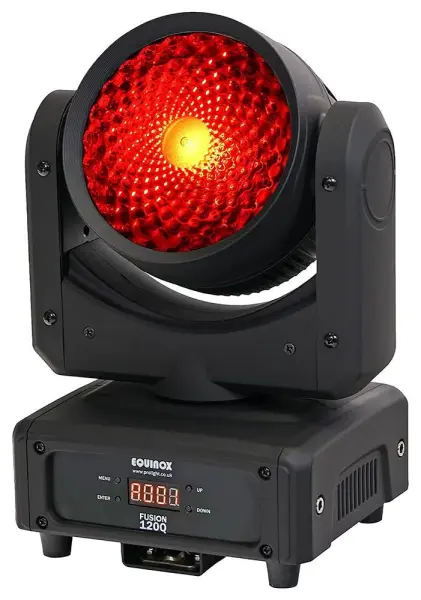

Equinox Fusion 120Q 120W RGBW COB LED Moving Head

The Equinox Fusion 120Q is a small yet powerful 120W LED moving head packed with professional features. Featuring a 120mm front lens and high CRI (90), this fixture delivers exceptional colour rendering, while its fast movement and built-in light shows bathe any venue in vibrant washes of colour. Whether you are setting up a stage, club, or event space, the Fusion 120Q provides versatile lighting effects with ease.

Equipped with a 1x 120W quad-colour COB LED (RGBW), this moving head offers a beam angle of 35° and an impressive 3,801 Lux @ 2m when fully on. The unit includes a host of colour macros and colour temperature presets, along with four selectable dimming curves (Linear, square law, inverse square law, and S-curve) for smooth fades. A variable strobe and 0–100% dimming give complete control over your lighting design.

Control is flexible, with DMX channels selectable between 2, 9, 12, or 16, plus auto, sound-active, manual, and master/slave modes. The 16-bit pan/tilt positioning ensures precise movement (Pan: 540°, Tilt: 220°), and pan/tilt auto correction maintains accuracy. Forward-facing show modes and a 4-button menu with LED display make operation straightforward.

Key Features

• Light Source: 1x 120W quad-colour COB LED (RGBW)
• Beam Angle: 35°
• Output: 3,801 Lux @ 2m (full on)
• CRI: 90
• Refresh Rate: 20kHz
• DMX Channels: 2/9/12 or 16 selectable
• Modes: Auto, sound active, manual, and master/slave
• Colour Macros: Built-in
• Colour Temperature Presets: Included
• Pan/Tilt: 540° / 220° with auto correction and 16-bit positioning
• Dimming: 0–100% with 4 curves
• Strobe: Variable
• Menu: 4-button with LED display
• Connections: PowerTwist TR1 input/output, 3-pin XLR input/output
• Cooling: Fan
• Power Consumption: 121W
• Power Supply: 100V to 240V, 50/60H
