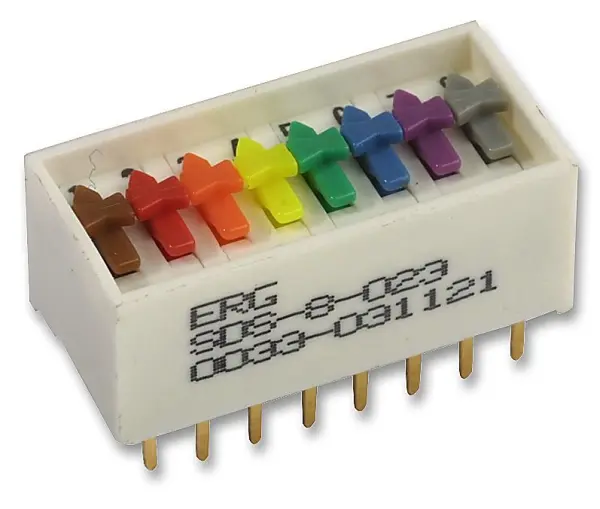

ERG Components SDS-8-023 8 Way DIL Switch

The ERG Components SDS-8-023 8 Way DIL Switch is an 8-circuit DIP switch with single-pole single-throw (SPST) contacts, designed for through-hole mounting on printed circuit boards. Part of the SpectraDIL ON/OFF 023 series, it provides large, clear numerals for identifying each circuit setting, supporting accurate configuration in complex assemblies.

Overview

The switch uses an EIA colour-coded slider that is recessed into the switch body. This recessed design helps reduce accidental or unintentional changes to switch settings, offering added protection against operational errors in the field. The unit is supplied on tape and reel and is base-sealed, making it compatible with automated flow soldering and subsequent solvent or aqueous washing processes, which suits high-volume PCB manufacturing.

Performance and Construction

The switch features a 1µm hard gold-plated wiping contact. It is rated for a maximum DC voltage of 100V and a maximum DC current of 1A, making it suitable for signal routing and configuration applications within electronic control systems. The sealed design and through-hole mounting provide a secure mechanical connection to the printed circuit board.

Key Features

• 8 circuits for multiple switch settings
• Recessed EIA colour-coded slider
• Large, clear numerals for each circuit
• Base-sealed for automated flow soldering and washing
• 1µm hard gold-plated wiping contact
• Supplied on tape and reel

Specifications

• Number of circuits: 8
• Actuator style: Slide
• Mounting: Through hole
• Contact configuration: SPST
• Maximum DC voltage: 100V
• Maximum DC current: 1A

Choose the ERG Components SDS-8-023 8 Way DIL Switch when you need an 8-circuit through-hole DIP switch with a recessed slider and a sealed base for automated PCB assembly.
