FINDER 2-Pole Modular Relay, 1NO + 1NC, 12V DC
Reliable FINDER 2-pole modular relay with 1NO + 1NC contacts, 12V DC coil, and DIN rail mounting for industrial applications.
The FINDER 22.23.9.012.4000 is a high-quality, 2-pole modular step relay designed for reliable switching applications. Featuring a DC coil from the 20.23 series, this relay offers double phase switching with 1NO-1NC (SPST-NO + SPST-NC) configuration. It includes a test button with mechanical indicators for easy operation monitoring.
This relay is equipped with cadmium-free AgSnO₂ contacts, ensuring durability and environmental safety. It supports connection to illuminated pushbuttons when paired with the additional part 026.00. Designed for seamless integration, it mounts on a 35mm rail (EN 60715), making it ideal for industrial and commercial installations.
Key Features:
- High Isolation: 4kV (1.2/50µs) isolation between coil and contacts.
- Compact Design: Slim 17.5mm width for space-efficient installations.
- Durability: Continuous duty rating for both coil and contacts.
- Silent Operation: AC/DC coil with varistor protection for quiet performance.
- Safety: Protective separation (reinforced insulation) between coil and contacts.
- Visibility: Mechanical and LED indicators as standard for easy status monitoring.
- Flexibility: Available in AgNi and AgSnO₂ contact versions.
Specifications:
- Contact Configuration: SPST-NO, SPST-NC
- Coil Voltage: 12V DC
- Contact Current: 20A
- Relay Mounting: DIN Rail
- Coil Type: DC
- Contact Voltage VAC: 250V AC
- Relay Terminals: Screw
- Coil Resistance: 115ohm
With its robust construction and versatile features, the FINDER 22.23.9.012.4000 relay is a reliable choice for various switching applications.
- Industrial control panels
- Commercial electrical systems
- Automation systems
- Machinery control circuits

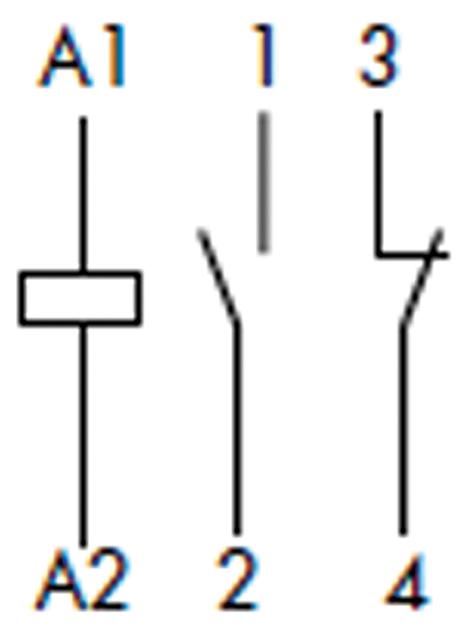

- Double phase switch: 1NO-1NC (SPST-NO + SPST-NC)
- Test button with mechanical indicators
- Possible to connect illuminated pushbuttons with additional part 026.00
- Contact material: AgSnO₂ (cadmium-free)
- Mounting: 35mm rail (EN 60715)
- Isolation: 4kV (1.2/50µs) between coil and contacts
- Width: 17.5mm
- Identification label included
- Protection rating: IP20
- Continuous duty for coil and contacts
- AC/DC silent coil with varistor protection
- Protective separation (reinforced insulation) between coil and contacts
- Mechanical and LED indicators as standard
- AgNi and AgSnO₂ contact versions available
- Contact Configuration: SPST-NO, SPST-NC
- Coil Voltage: 12V DC
- Contact Current: 20A
- Relay Mounting: DIN Rail
- Coil Type: DC
- Contact Voltage VAC: 250V
- Relay Terminals: Screw
- Coil Resistance: 115ohm
- Weight: 110g
