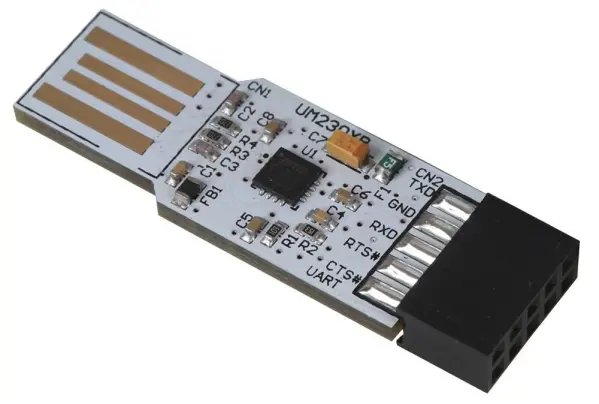

FTDI UMFT230XB-01 USB to UART Breakout Module
FTDI UMFT230XB-01 USB to UART breakout board, USB 2.0 full-speed, up to 3Mbaud, 3.3V & 5V outputs.
The FTDI UMFT230XB-01 is a compact breakout board that converts a USB 2.0 full-speed connection to a basic UART interface, ideal for embedded development and prototyping. Designed for direct plug-in into a USB host connector, this module eliminates the need for a separate USB cable, making it a space-saving solution for your projects.
This breakout board is based on the FT230XQ IC and offers a reliable bridge between USB and UART protocols. It supports UART data rates up to 3Mbaud, ensuring high-speed communication. The module provides four control bus lines, a 3.3V power output (with a 50mA current limit), and a fused 5V output for added safety.
Key Features:
- Direct plug-in design – no USB cable required
- USB 2.0 full-speed compatible
- UART data rates up to 3Mbaud
- Four control bus lines for enhanced functionality
- 3.3V power output (50mA current limit)
- Fused 5V output for protection
The board's compact dimensions (43mm x 33mm x 15mm) and lightweight design make it easy to integrate into your existing setups. Whether you are developing new hardware or need a quick interface solution, the FTDI UMFT230XB-01 delivers dependable performance in a simple, efficient form factor.
Specifications:
_ Interface: USB 2.0 full-speed to UART _ UART Rate: Up to 3Mbaud _ Control Lines: Four _ Power Output: 3.3V (50mA limit) and fused 5V _ Connector Type: Socket pin for direct USB host connection _ Dimensions: 43mm x 33mm x 15mm _ Weight: 5g
Please note: This module does not have a USB connector; it plugs directly into the USB host port, and the PCB pads make the necessary electrical contacts.
