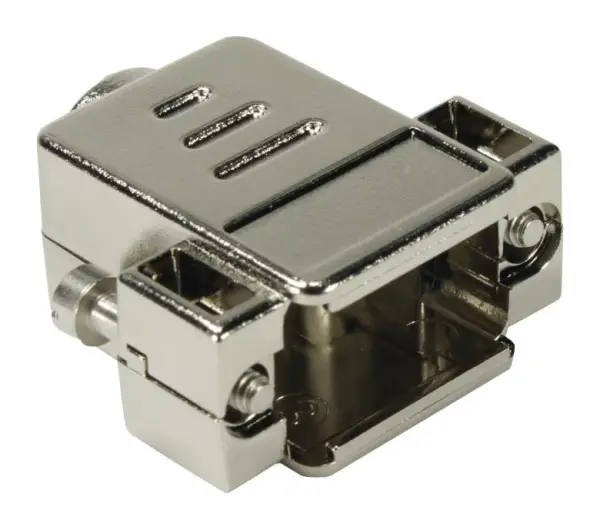

HARTING D-Sub Backshell DD 180° Metallised Thermoplastic Body

The HARTING D-Sub Backshell DD is an essential component designed for DD-series D-sub assemblies, providing a robust and secure termination point. Featuring a specialised 180-degree orientation, this backshell offers optimal cable management and routing for complex installations where space and bend radius are critical considerations. Constructed from a high-quality metallised thermoplastic, it delivers excellent durability and reliable performance in demanding environments.

A primary function of this backshell is to provide inline strain relief, protecting the delicate internal connections of the D-sub connector from the mechanical stresses of cable pull, vibration, and accidental tugging. This significantly enhances the longevity and reliability of the entire cable assembly, preventing wire breakage and connection failure.

Furthermore, the metallised body provides effective EMI (Electromagnetic Interference) screening. This shielding is crucial for maintaining signal integrity in electrically noisy environments, preventing external interference from corrupting data transmission and ensuring clean, uninterrupted communication for sensitive electronic equipment.

The compact and precisely engineered design ensures a secure fit with compatible DD-series connectors, creating a professional, finished assembly. Its lightweight yet strong construction makes it suitable for a wide range of applications in industrial automation, telecommunications, data centres, and test and measurement setups where dependable connectivity is non-negotiable.

Key Specifications

• Type: D-sub backshell for DD-series connectors
• Orientation: 180-degree
• Primary Material: Metallised thermoplastic
• Key Features: Inline strain relief and EMI/RFI shielding
• Dimensions (H x W x D): 45 mm x 35 mm x 25 mm
• Weight: 16 grams

By integrating the HARTING D-Sub 9
