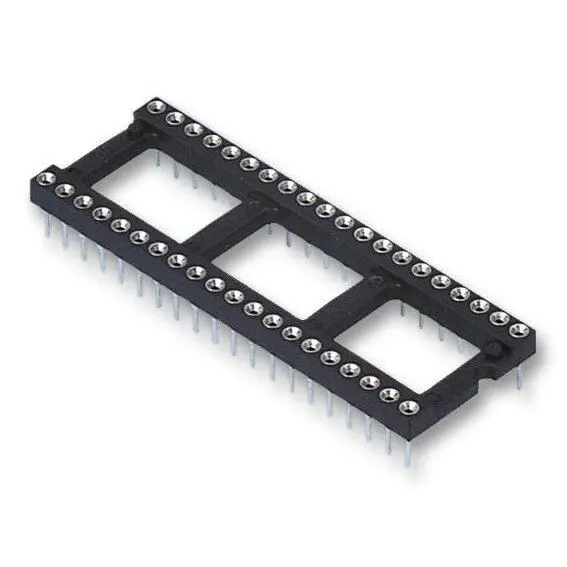

Harwin DIL IC Socket 40 Way, 0.6in/15.42mm, 10 Pack

The Harwin DIL IC Socket is a 40-way socket with 0.6in row spacing that provides a connection point for integrated circuits in electronic assemblies. It is supplied as a pack of 10 complete tubes, giving ready-to-use components for prototyping or batch manufacturing.

Overview

The socket uses four-leaf contacts made from beryllium copper, with each contact finished in 0.25µ thick gold plating. The gold plating is specified to give a low-resistance connection and corrosion resistance in critical applications. The body is made from glass-filled polyester, a material recognised by UL for its stability and flame-retardant properties. The brass pins are tin-lead plated for solderability, which supports integration onto printed circuit boards during assembly.

Key Features

• Four-leaf beryllium copper contacts for IC pin retention
• 0.25µ thick gold plating on contacts
• Glass-filled polyester body with UL recognition
• Tin-lead plated brass pins for solderability
• Standard 2.54 mm pitch for compatibility with DIL packages
• Row pitch of 15.24 mm between contact rows
• Low-profile body height of 4.2 mm
• Fully auto-insertable for high-volume production

Applications

The socket suits integrated circuit connections in electronic assemblies, including printed circuit board builds, prototyping, and batch manufacturing. Its compact body height makes it suitable where space is limited.

This 40-way DIL IC socket is suited to mounting integrated circuits on printed circuit boards where gold-plated contacts and solderable pins are required.
