IQD 8MHz HC49 SMD Crystal, 50ppm, 16pF
IQD 8MHz HC49 SMD crystal with 50ppm stability and 16pF load capacitance. Ideal for industrial applications.

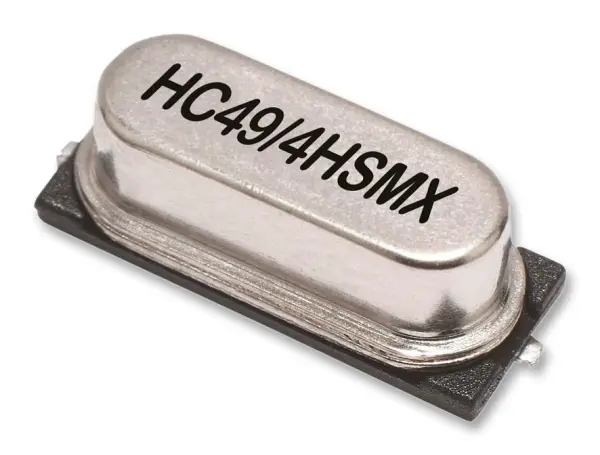

The IQD 8MHz HC49 SMD Crystal is an industry-standard surface mount device designed for reliable frequency control. This crystal is resistance welded and hermetically sealed in an inert atmosphere, ensuring robust performance and longevity. It features glass-to-metal seals on the leads, with lead wires mounted onto a plastic former to create a practical gull wing mount, facilitating straightforward surface mount assembly.
Delivering a nominal frequency of 8MHz, this crystal offers a frequency tolerance of ±30ppm and a frequency stability of ±50ppm, making it suitable for applications requiring consistent timing. The load capacitance is rated at 16pF.
Engineered for demanding environments, the crystal operates reliably within a temperature range of -10°C to 60°C. Encased in the standard HC49 package with 2 pins, it provides a compact and efficient solution for your electronic circuits.
Key Specifications
- Nominal Frequency: 8MHz
- Frequency Tolerance: ±30ppm
- Frequency Stability: ±50ppm
- Load Capacitance: 16pF
- Crystal Case: HC49
- Mounting Type: SMD (Gull Wing)
- Operating Temperature Range: -10°C to 60°C
- Product Weight: 0.544 grams
- Dimensions: 43 mm (H) x 33 mm (W) x 15 mm (D)
After bigger quantities? Need extra quantities? Get in touch and we'll organise it for you.
- Dispatched within 0-2 business days
- Delivery to United States: 3-5 business days*
- Free Shipping Included
