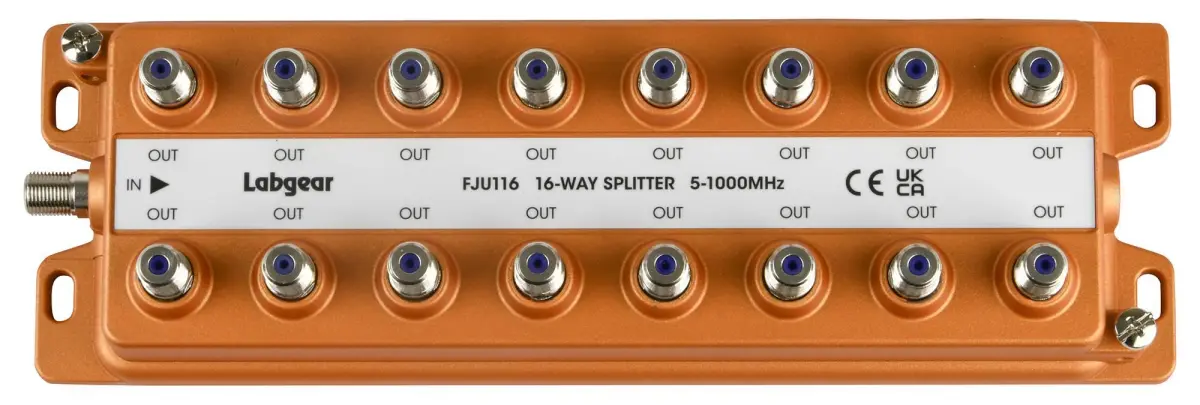

Labgear UHF TV Signal Splitter, 16 Way, 5-1000MHz

The Labgear UHF 16-Way Splitter is an essential component for distributing television signals from a single aerial to multiple receivers. Designed for reliable performance across a wide frequency band from 5 to 1000MHz, it is ideal for use in residential, commercial, or communal television distribution systems.

Featuring a robust die-cast aluminium alloy housing, this splitter is built for durability and effective electromagnetic shielding. Its Screening Factor Class A rating ensures superior protection against external signal interference, delivering a clean and stable signal to all connected devices. The unit is supplied with fixing screws for secure wall or surface mounting.

All 16 output ports utilise standard 75Ω F-type connectors, ensuring compatibility with most coaxial cabling used in TV and satellite installations. The inclusion of two dedicated ground terminals enhances safety and system stability by providing a reliable earthing point, which is crucial for protecting equipment from electrical surges.

This passive splitter efficiently divides a UHF signal without the need for external power, making it a simple and cost-effective solution for expanding your home entertainment network. It is perfect for use in large households, apartment blocks, hotels, or offices where multiple televisions require a signal from a shared aerial source. Its compact design allows for discreet installation in loft spaces, behind media units, or within distribution cabinets.

Key Specifications:

• Operating Frequency: 5 - 1000MHz
• Number of Outputs: 16 Way
• Connector Type: F-type (female)
• Impedance: 75 Ohm
• Housing: Die-cast aluminium alloy
• Screening: Class A
• Features: Two ground terminals
• Supplied With: Fixing screws
