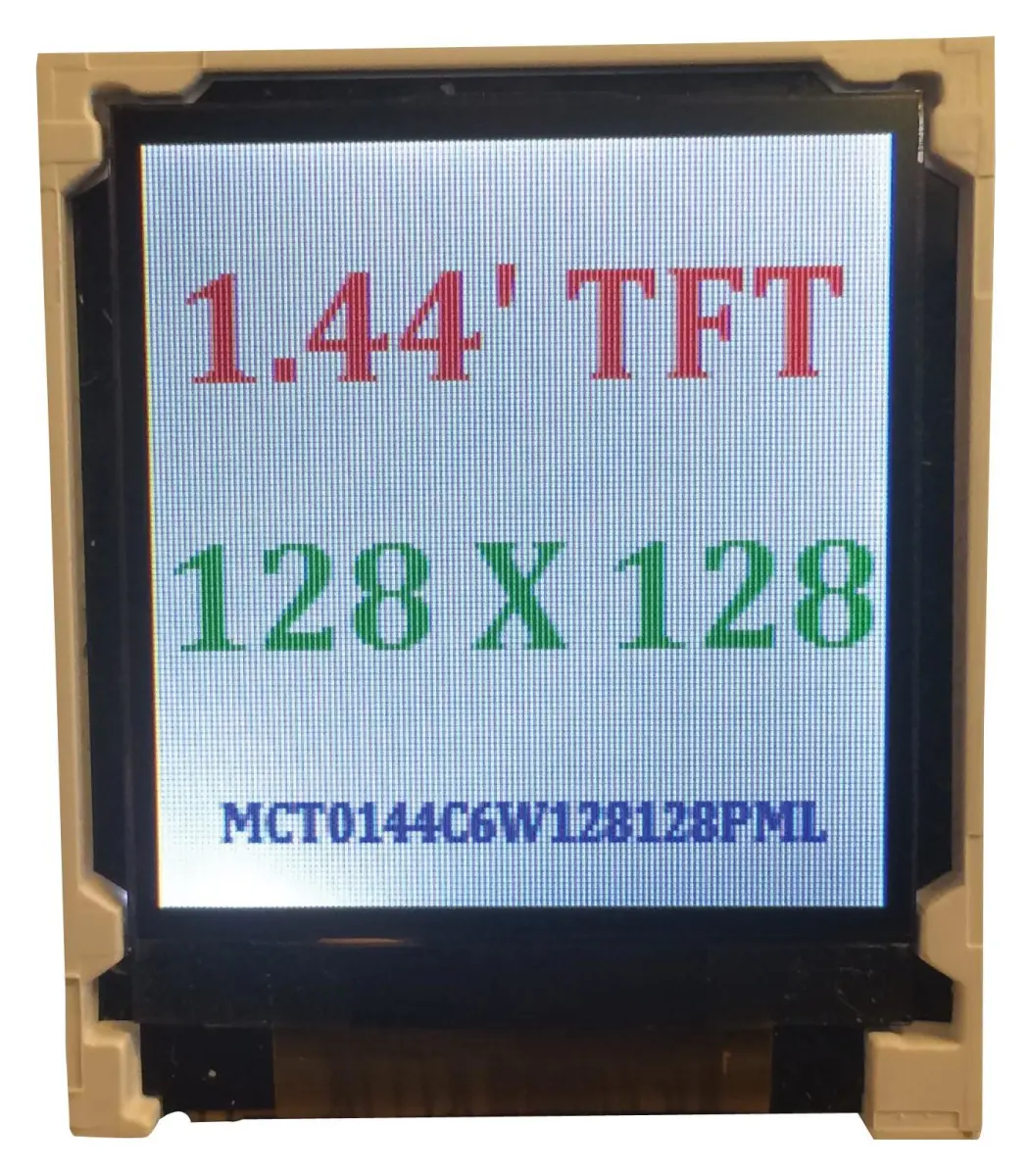

MIDAS DISPLAYS 1.44” TFT LCD, 128 x 128 Pixels, RGB, 3.3V

The MIDAS DISPLAYS 1.44” TFT LCD Module is a compact and high-performance display solution featuring a 128 x 128 pixel resolution within a vivid RGB colour scheme. Designed for embedded systems and electronic projects, this transmissive display utilises thin-film transistor (TFT) active matrix technology for fast refresh rates and excellent image quality.

It is powered by the versatile ST7735S controller, offering multiple interface options for flexible integration. The module supports 8/16-bit parallel and 3/4-line Serial Peripheral Interface (SPI) protocols, making it compatible with a wide range of microcontrollers and development boards. A bright LED backlight provides a uniform luminance of 200 cd/m², ensuring clear visibility under various lighting conditions.

Key Features & Specifications

• High-Quality Display: 1.44-inch diagonal viewing area measuring 25.5mm x 26.5mm, delivering sharp graphics and text.
• Wide Viewing Angles: Offers 60/60/30/60 degree viewing angles for consistent colour and clarity from different perspectives.
• Excellent Contrast: A high 700:1 contrast ratio provides deep blacks and bright whites for superior image depth.
• Robust Operation: Certified for a wide operating temperature range from -20°C to +70°C, suitable for industrial and challenging environments.
• Compact & Lightweight: The entire module measures just 32.36mm x 38.0mm x 2.6mm and weighs only 15 grams, ideal for space-constrained applications.
• Easy Integration: Features a 30-way, 0.5mm pitch flat flex cable (FFC) connector for reliable and straightforward connection to host PCBs.

With its combination of a crisp display, multiple interface options, and rugged design, this TFT module is a reliable choice for creating user interfaces in instrumentation, portable devices, hobbyist electronics, and industrial control panels.
