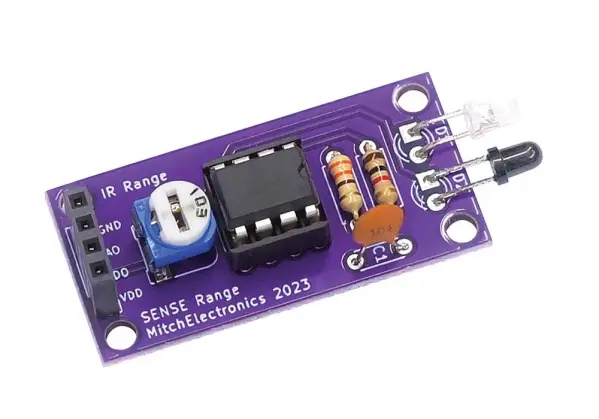

Mitch Electronics IR Range Sense Module Kit

Part of the Mitch Electronics SENSE range, the IR Range Sense Module Kit is a versatile DIY sensor module that utilises infrared (IR) diodes to detect the range of a surface or the presence of a nearby object. Designed for close-range detection, this sensor is capable of accurately sensing objects up to 150mm away, making it a perfect addition to robotics and electronics projects.

A key feature is its flexibility in output. The module provides both digital and analogue outputs, allowing for a wide range of microcontroller integration. The digital output provides a simple logical 1 or 0 signal in the presence of reflected IR light, ideal for basic presence detection. The analogue output delivers a voltage proportional to the amount of IR light detected, enabling more nuanced measurements of distance or reflectivity. An onboard potentiometer allows for precise adjustment of the detection sensitivity to suit your specific application.

This module is supplied in kit form, which makes it an excellent choice for beginners looking to develop their soldering skills or for anyone wanting a hands-on electronics experience. All components in the Mitch Electronics SENSE range share identical dimensions, pin-out configurations, and mounting hole positions. This standardised design ensures modules are fully interchangeable, allowing you to easily swap sensors in and out of your projects as your requirements evolve.

The module operates on a wide voltage range of 3V to 12V, providing compatibility with various power supplies and development boards. For more complex sensing applications, multiple IR Range Sense modules can be installed in parallel to create a custom IR light barrier or a multi-point detection array. It is perfectly suited for incorporating into autonomous line-following buggies, obstacle-avoidance robots, or any project requiring non-contact proximity sensing.

Key Features:

• DIY sensor kit for electronics &
