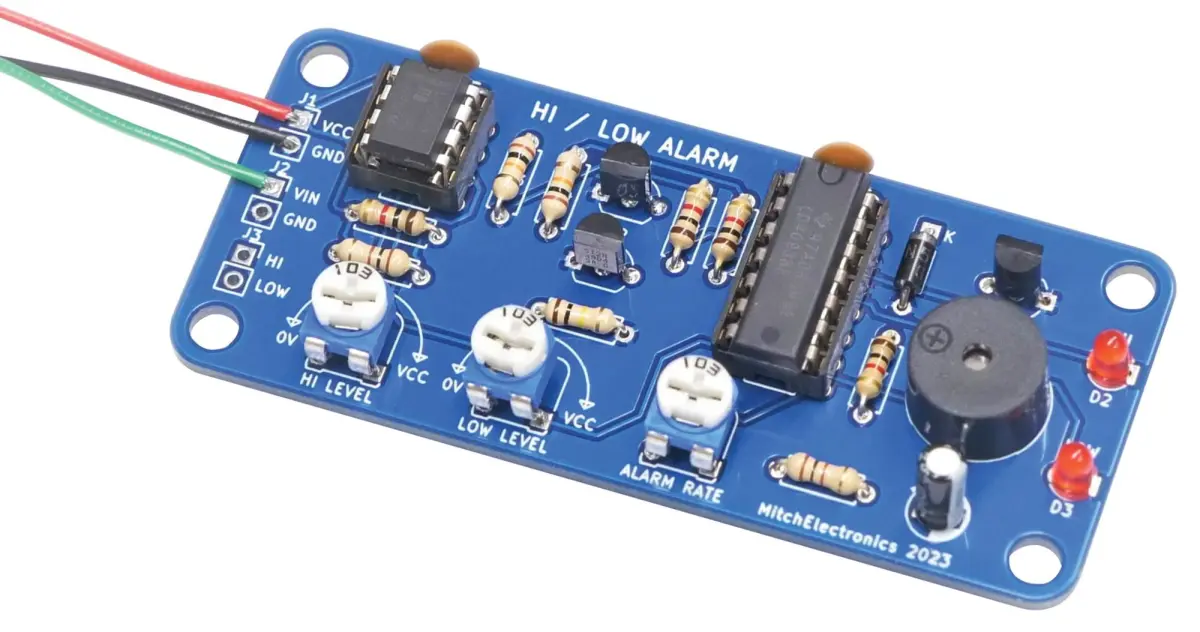

HILOW High / Low Voltage Alarm Electronics Project Kit

The HILOW High / Low Voltage Alarm Electronics Project Kit is a versatile and educational circuit designed to monitor an input voltage and trigger an audible alarm if the voltage drifts outside a user-defined safe range. This simple yet effective electronics project is perfect for hobbyists, students, and educators looking to explore practical applications of voltage detection and logic circuits.

This clever device converts analogue input signals into digital alarm outputs, making it an excellent tool for understanding sensor interfacing and circuit protection. It features onboard potentiometers for precise adjustment of both the detection voltage threshold and the rate of the audible beeper, offering full control over its sensitivity and alert style.

Ideal for a Wide Range of Applications

The kit’s flexibility makes it suitable for numerous monitoring tasks. It can be configured to detect if a door or window has been left open by monitoring a switch, sense fluid levels in a tank, or track the position of a potentiometer. Its built-in 100Ω series resistor on the monitored input provides essential protection against sudden current spikes, safeguarding the circuit during use.

Perfect for Learning and Practice

Supplied in an easy-to-assemble kit form, the HILOW project is ideal for beginners to electronics or for those seeking soldering practice. It serves as a hands-on classroom example of analogue-to-digital conversion and voltage comparator circuits. The kit requires a separate 5V DC power supply to operate.

Key Features & Specifications

• Function: Triggers an alarm when monitored voltage is too high or too low.
• Adjustability: Onboard pots for setting detection voltage and beeper rate.
• Input Protection: 100Ω series resistor guards against current spikes.
• Format: Supplied as a kit for assembly.
• Power: Requires a sepaг
