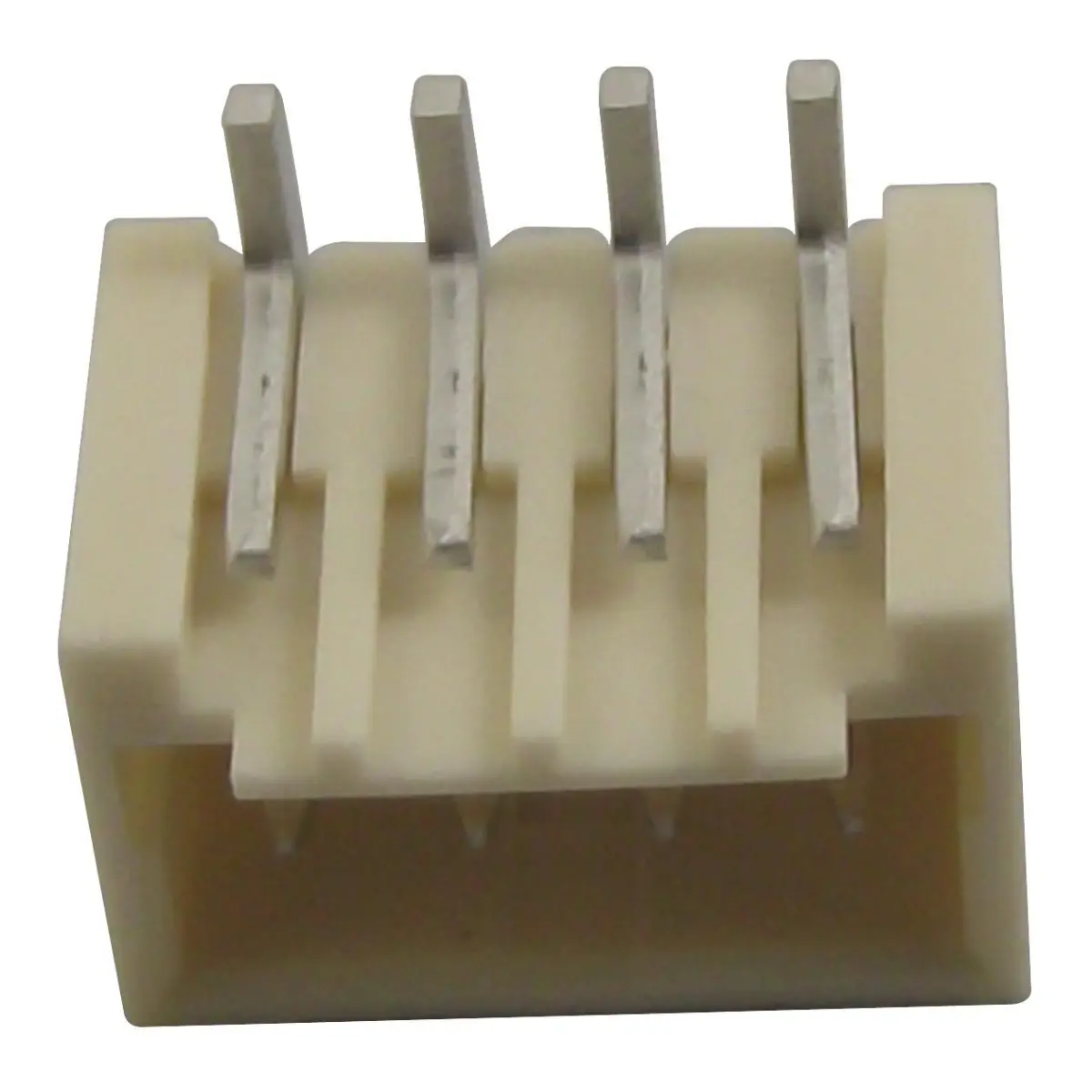

Molex / Brad 1.5mm Pico-SPOX Wire-to-Board Header, SMT, 4 Way

The Molex / Brad 1.5mm Pitch Pico-SPOX Wire-to-Board Header is engineered for high-density, compact electronic applications, delivering a reliable and robust connection solution. Featuring a box-style contact design, it ensures a secure and stable interface, while the integrated friction lock mechanism guarantees that the connector remains firmly mated during use, resisting vibration and accidental disconnection. This surface-mount (SMT) vertical header is shrouded, providing keying and polarisation to prevent incorrect mating and protect the delicate pins.

Crafted from durable brass with a reliable tin plating, the contacts offer excellent conductivity and corrosion resistance, ensuring a long operational life. The 1.5mm pitch spacing makes this connector ideal for space-constrained PCB designs where maximising component density is critical. With a compact footprint and a vertical orientation, it facilitates efficient board stacking and simplifies cable routing in tight enclosures.

This specific 4-way, single-row header is part of the trusted Pico-SPOX 87437 product range, known for its precision and quality in demanding interconnect applications. Its surface-mount termination allows for automated assembly processes, enhancing manufacturing efficiency and consistency.

Key Specifications

• Pitch Spacing: 1.5mm
• Number of Contacts: 4
• Number of Rows: 1
• Contact Material: Brass
• Contact Plating: Tin
• Termination Type: Surface Mount (SMT)
• Header Type: Vertical, Shrouded
• Product Range: Pico-SPOX 87437
• Dimensions (LxWxH): 15mm x 33mm x 43mm
• Weight: 0.217 grams

Offering a blend of miniaturisation, secure locking, and polarised design, this Pico-SPOX header is a dependable choice for creating permanent wire-to-board interconnections in advanced electronic assemblies.
