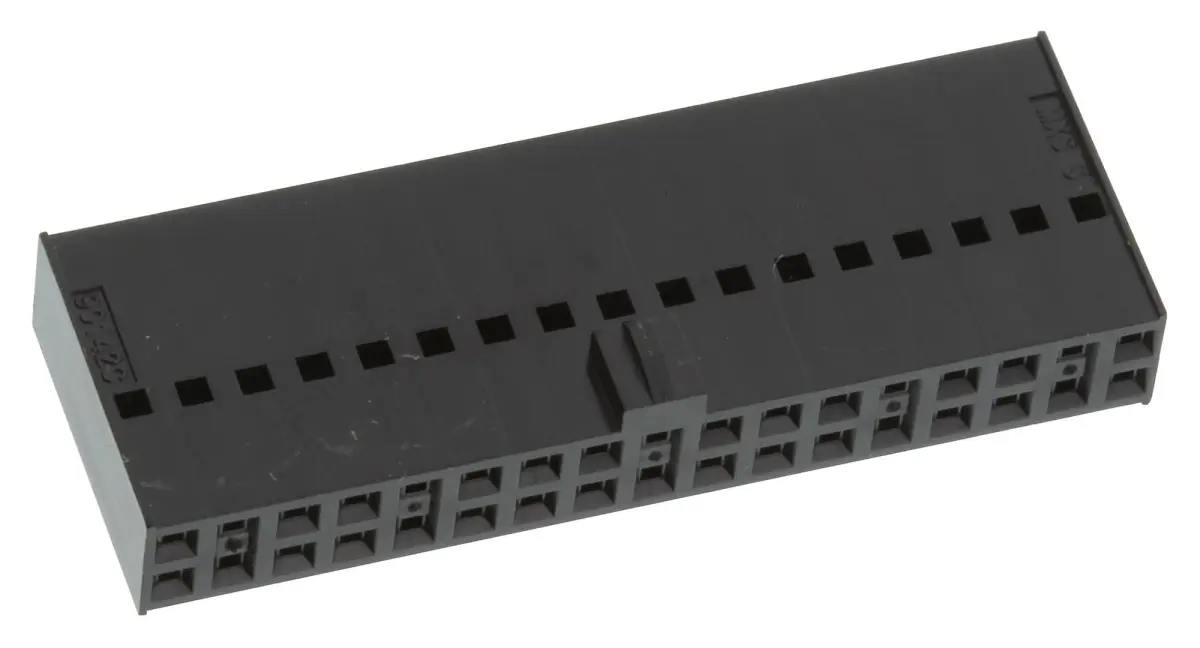

Molex / Brad C-Grid III 90142 Connector Housing Receptacle, 34-Way, 2.54mm

The Molex / Brad C-Grid III 90142 is a high-density, 34-way receptacle connector housing designed for robust and reliable wire-to-board connections in demanding applications. Engineered to accept 90119 series crimp terminals, it facilitates multi-signal transmission with precision and stability.

This housing features a 2.54mm (0.1-inch) pitch, making it ideal for compact electronic designs where space optimisation is critical. The receptacle design ensures secure mating with corresponding headers, providing a stable and vibration-resistant interface for your circuitry.

Crafted for durability, the housing offers excellent mechanical protection for the crimped terminals, helping to prevent damage during handling and installation. Its design supports efficient, high-volume wiring harness assembly, streamlining production processes for industrial control systems, telecommunications equipment, and computer peripherals.

Key Features and Applications

• High-Density Design: The 34-position configuration allows for a significant number of connections in a relatively small footprint.
• Standard Pitch: The 2.54mm pitch is a common industry standard, ensuring broad compatibility with test equipment and prototyping boards.
• Secure Connection: The housing reliably retains crimp terminals, ensuring long-term electrical continuity and mechanical integrity.
• Versatile Use: An essential component for creating internal wiring harnesses within electronic enclosures, from power supplies and motor drives to data acquisition modules.

This connector housing is a fundamental building block for professional engineers and technicians, providing a trusted solution for organised and reliable internal board-level interconnections.
