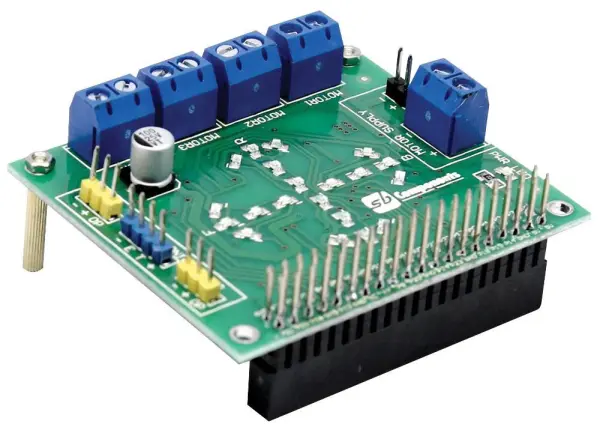

Motor Shield Motor Driver Board for Raspberry Pi

The Motor Shield Motor Driver Board for Raspberry Pi is a robust solution for driving multiple motors in your Raspberry Pi-based robotics projects. Engineered around the dual H-Bridge IC L293D, this shield provides a reliable and efficient way to control both DC and stepper motors, making it an essential component for hobbyists and professionals alike.

With the ability to support up to 4 DC motors or 2 stepper motors, this board offers flexibility for a wide range of applications. It is compatible with several Raspberry Pi models, including Pi Zero, Pi A+, Pi 2, and Pi 3 B/B+, ensuring seamless integration with your existing setup. The Python-based GUI and library simplify motor control, allowing you to focus on your project's creativity.

Performance and Protection

The board supports a motor input supply range of 6V to 24V, with a single motor output current of 600mA (1A peak) per channel, delivering adequate power for your motors. Onboard LED arrow indicators provide clear visualization of motor direction, enhancing control feedback. For sensor integration, the shield features 2x IR sensor connectors and 1x ultrasonic sensor connector, all with 3.3V level output protection, ensuring safe and reliable operation. The male header and screw terminal facilitate easy motor supply connections, while the GPIO stacking header allows for additional expansion.

Included

This product includes the motor driver board only. Please note that the Raspberry Pi is not included and is shown for illustration purposes only. Whether you are building a robot, a CNC machine, or any motor-driven project, this motor shield provides the functionality and reliability you need.
