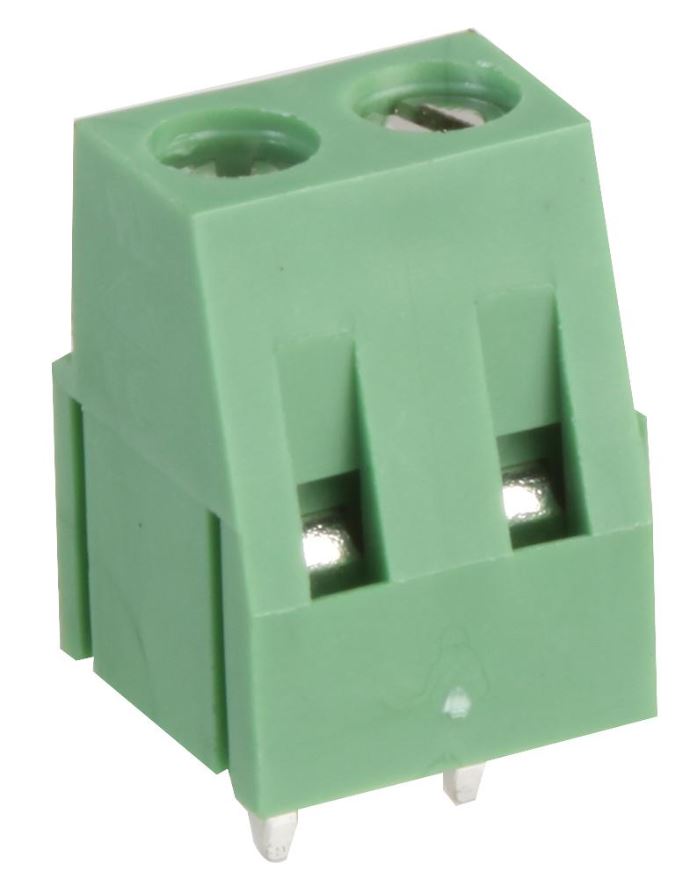

Multicomp Pro 5.08mm 2-Way Screw Terminal Block, 26-12AWG
Multicomp Pro 5.08mm modular PCB terminal block, 2-way, 26-12AWG, screw connection. UL-recognised for industrial applications.
The Multicomp Pro 5.08mm 2-Way Screw Terminal Block provides a reliable and secure connection for electrical wiring applications. Featuring a through-hole, right-angle design with 5.08mm pitch spacing, this terminal block is ideal for a wide range of industrial uses.
Constructed with a polyamide66 housing and brass terminals with tin plating, it ensures durability and excellent conductivity. The UL-recognised design operates efficiently within a temperature range of -40°C to 105°C, making it suitable for demanding environments.
Key Features:
- Modular design for easy combination with other Multicomp Pro terminal blocks
- Accepts wire sizes from 26AWG to 12AWG
- 16A rated current and 300V rated voltage
- Green insulation for easy identification
Applications:
- Industrial control panels
- Electrical cabinet wiring
- PCB mounting applications
Please note: Due to high market demand, lead times may vary, and this product is exempt from discounts.
Technical Specifications
- Dispatched within 0-2 business days
- Delivery to Worldwide: 6-7 business days*
- Free Shipping Included
- Industrial control panels
- PCB wiring
- Electrical cabinets
- Automation systems
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Housing Material: Polyamide66
- Terminal Material: Brass (tin-plated)
- Insulation Colour: Green
- Pitch Spacing: 5.08mm
- No. of Positions: 2-way
- Wire Size Range: 26AWG to 12AWG
- Wire Connection Method: Screw
- Rated Current: 16A
- Rated Voltage: 300V
- Block Orientation: Through Hole, Right Angle
- Operating Temperature: -40°C to 105°C
- Product Range: MC00004
- Weight: 900g
