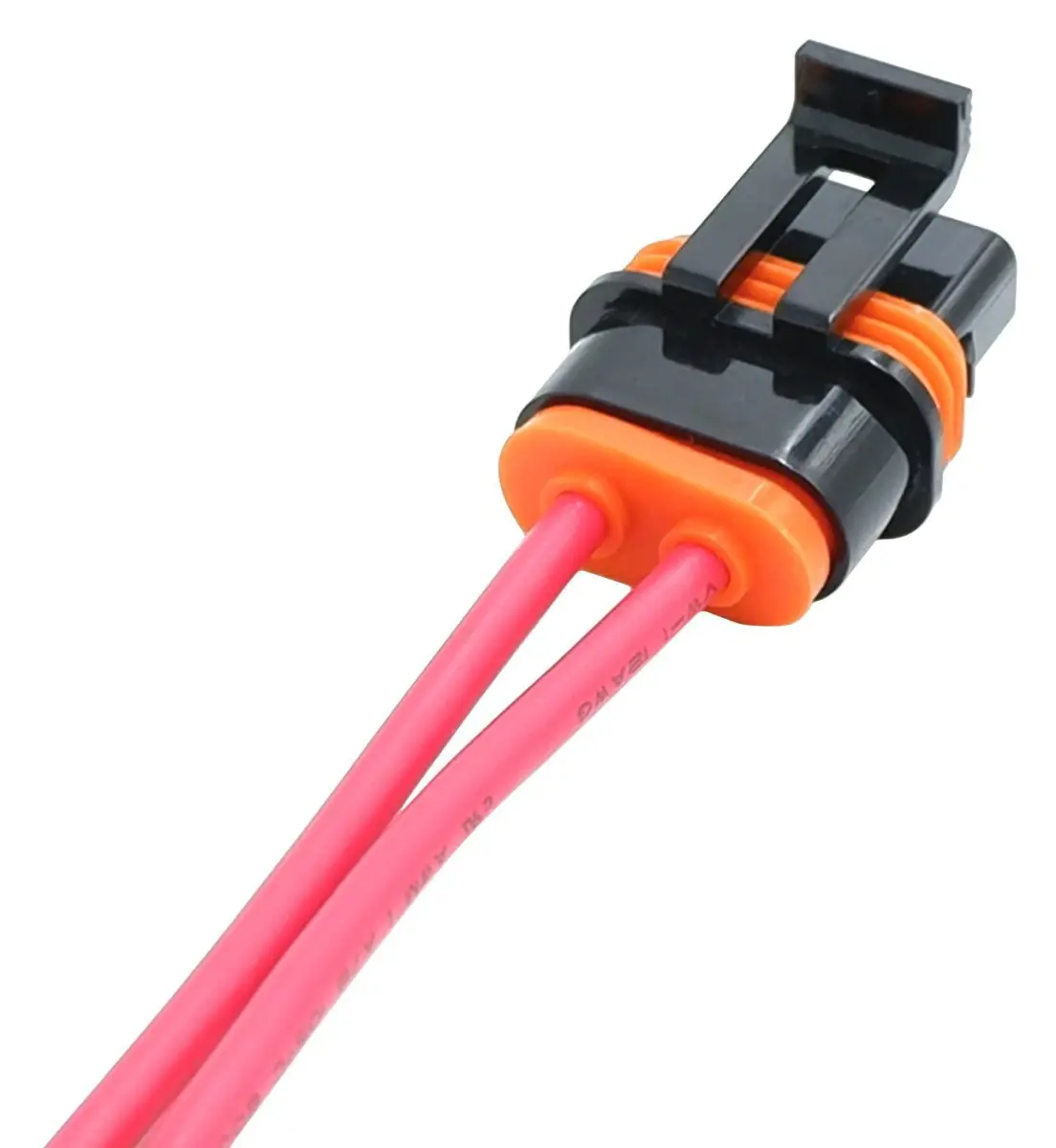

Multicomp Pro Inline Waterproof Blade Fuseholder IP67 30A

The Multicomp Pro Inline Waterproof Blade Fuseholder is an IP67 rated inline fuseholder with a 30A maximum current rating, designed for protecting electrical circuits in demanding conditions.

The IP67 rating means the holder is completely protected against dust ingress and can withstand temporary immersion in water. This makes it suitable for systems exposed to moisture, vibration, or harsh environments. It accommodates standard automotive blade fuses, including ATC, ATO, and ATP types.

Overview

Constructed from PVC insulation with brass terminals, the fuseholder is pre-fitted with UL1015 12 AWG wire leads, each 6 inches (approximately 152 mm) long. The in-line design allows it to be integrated into existing wiring looms, providing a protected point for fuse access and replacement. With a maximum current rating of 30A and a voltage rating of 32V DC, it is intended for circuits in various 12V and 24V DC systems. Its compact dimensions of 43 mm height, 33 mm width and 15 mm depth allow it to be fitted in tight spaces.

Key Features

• Waterproof rating: IP67
• Fuse compatibility: ATC, ATO and ATP blade fuses
• Current and voltage: 30A maximum current, 32V DC
• Construction: PVC insulation body with brass terminals
• Wiring: 12 AWG (UL1015) wire leads, 6 inches long on each end
• Design: Single-fuse, in-line holder
• Dimensions: 43 mm (height) x 33 mm (width) x 15 mm (depth)
• Weight: 34.473 grams

Choose the Multicomp Pro Inline Waterproof Blade Fuseholder 30A when you need a fuseholder for in-line blade fuse installation in moisture-exposed or vibration-prone 12V or 24V DC circuits.
