NXP Octal Non-Inverting Buffer/Line Driver SOIC20

The NXP Octal Non-Inverting Buffer/Line Driver is a high-performance integrated circuit featuring 3-state outputs. Designed for robust digital logic applications, this device incorporates two active-high output enables (OE1 and OE2). When a HIGH signal is applied to either output enable pin, the outputs assume a high-impedance OFF-state, allowing for seamless integration in bus-oriented systems where data lines must be shared or isolated.

A standout feature of this component is the inclusion of input clamp diodes. These diodes enable the use of current-limiting resistors, making it possible to safely interface the inputs to voltages in excess of the supply voltage (VCC). The device operates at CMOS input levels and fully complies with the JEDEC standard no. 7A, ensuring broad compatibility with standard logic designs.

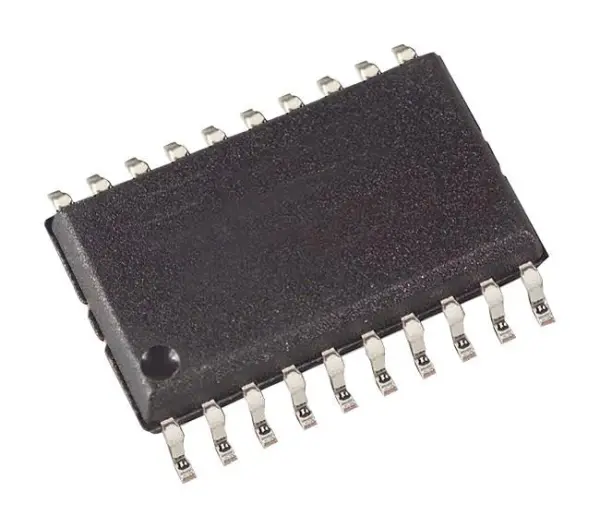

Housed in a compact SOIC-20 package, this buffer is well-suited for space-constrained surface-mount applications. It supports a versatile supply voltage range from 2V to 6V, and reliably operates across a wide temperature range from -40°C to 125°C, making it suitable for demanding environments. With an MSL rating of 1, it offers unlimited floor life for manufacturing convenience.

Key Features:

• Octal non-inverting buffer/line driver
• 3-state outputs for bus sharing
• Dual output enables (OE1, OE2)
• Input clamp diodes for over-voltage interfacing
• JEDEC standard no. 7A compliance
