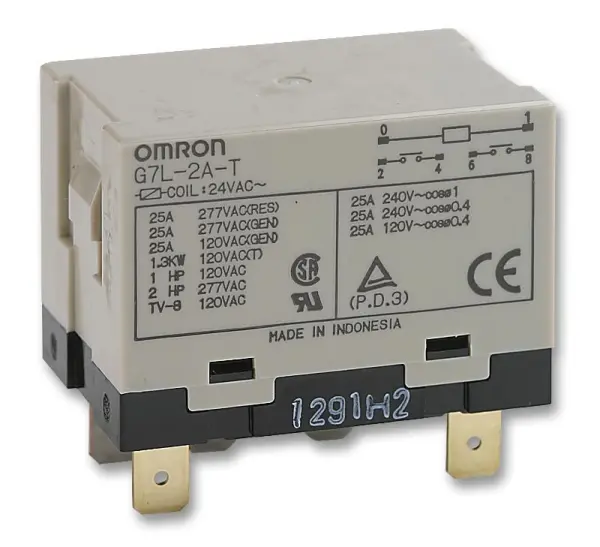

Omron G7L Series DPST-NO Power Relay, 25A 240VAC

The Omron G7L Series represents a line of high-performance, electromechanical PCB power relays. Engineered for reliability in demanding environments, these relays offer high capacity and exceptional dielectric strength. A standout feature is their robust performance during momentary voltage drops, eliminating contact chattering even when voltage dips to 50% of the rated level. This makes them exceptionally reliable for critical industrial and automation applications.

Designed with a compact, miniature footprint, the G7L series delivers maximum switching power in a small package, which is particularly advantageous for handling inductive loads. Safety and durability are paramount, with all insulation materials constructed from flame-resistant components that meet the stringent UL94V-0 qualification.

Installation flexibility is a key benefit, with options for quick-connect, screw, and PCB terminals, as well as convenient DIN rail mounting. The relay conforms to major international safety standards including UL, CSA, TÜV, and IEC950, ensuring global compatibility and peace of mind. A built-in safety design features a substantial 3mm contact gap for enhanced operational security.

This specific model is configured as a Double-Pole, Single-Throw, Normally Open (DPST-NO) relay. It operates with a 240VAC coil voltage and can switch a 25A contact current at 250VAC. The relay is panel-mounted and features non-latching operation with quick-connect terminals for efficient wiring. The silver alloy contacts ensure long-lasting, reliable performance, supported by a coil resistance of 21 kΩ.

Primary Applications:

• Industrial machinery and automation systems
• Power management and distribution units
• Process control equipment
• Motor drive and control circuits
• Lighting and power supply controllers
• Compressor and HVAC controls
• Consumer electronics and portable
