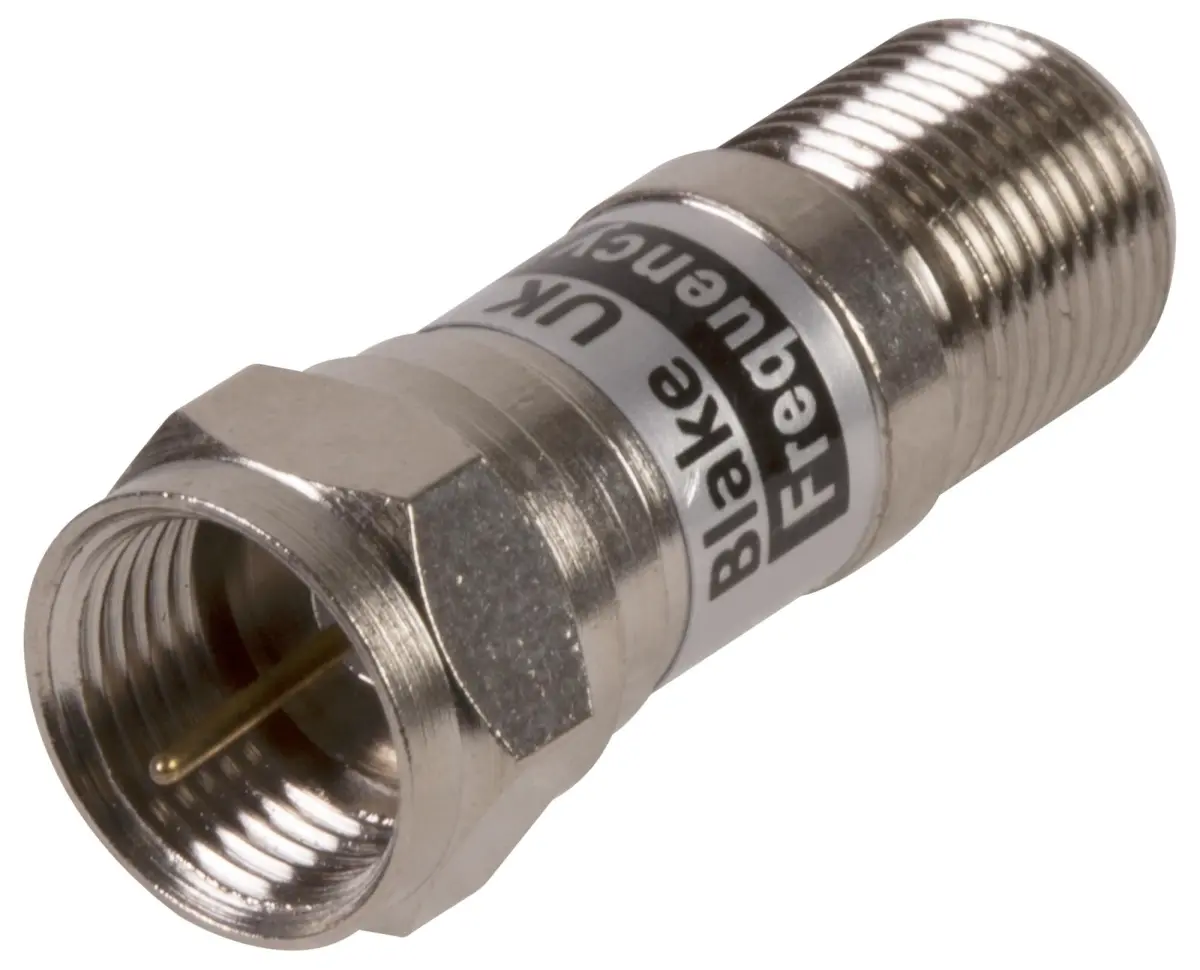

Proception DC Blocked F Type Plug to F Type Socket Terminator

The Proception DC Blocked F Type Plug to F Type Socket Terminator is a DC blocked F type terminator for satellite and RF installations. It prevents unwanted DC current from passing through the terminated port and helps protect sensitive equipment downstream.

Applications

This terminator is designed to cap off unused ports on satellite LNBs, splitters, triplexers, and both masthead and setback amplifiers. By sealing these ports, it helps prevent valuable RF signal from leaking out of the system, maximising signal strength and efficiency. It also acts as a barrier against stray RF interference or noise entering through open connections, which can degrade picture and sound quality.

Key Features

• DC Blocking: Prevents unwanted DC current from passing through the terminated port.
• Plug to Socket Design: Features an F type plug to F type socket connection.
• Straight Adapter Body: Compact and easy to install, and can also be used to join two F-type connections together.
• Impedance Matching: Unused ports on splitters and amplifiers should be terminated to maintain a proper impedance match and prevent signal reflections.
• Secure Seal: Provides a weather-resistant seal when tightened properly.
• PROCON30 Series: Part of the PROCON30 Series, built to professional standards.

Installation

With its compact and straight adapter body, this terminator is simple to fit. Tighten it properly to achieve the weather-resistant seal. Terminating all unused ports helps maintain system integrity and reduces the risk of signal loss and external interference.

Specifications

• Width: 2.2
• Depth: 0.2
• Height: 3.3
• Weight: 10 g

This terminator offers a simple yet practical way to cap unused F type ports and maintain system integrity.
