Proto-Advantage Dual Row 1.27mm Pitch 20-Pin Female Header to DIP-20 Adapter

The Proto-Advantage DR127D254P20F is a precision-engineered vertical header adapter designed to provide a reliable interface between a 20-pin female header and a standard DIP-20 footprint. This pre-assembled adaptor features a robust construction, making it an essential component for prototyping, testing, and converting circuit designs.

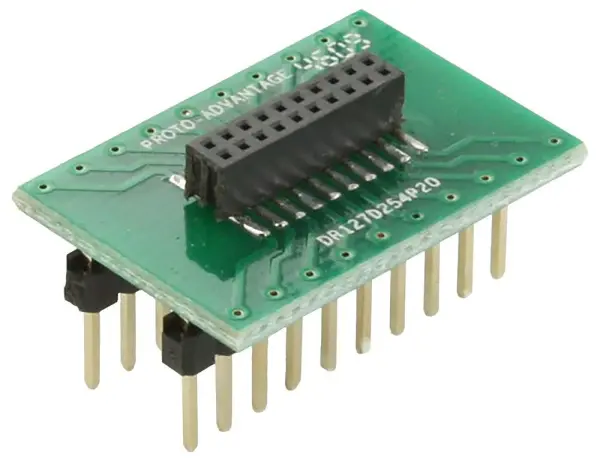

At the core of the adaptor is a high-quality FR-4 PCB, rated UL94V-0 for flame retardancy. The board measures 17.78mm x 25.4mm x 1.6mm (700mils x 1000mils x 62.5mils), offering a compact yet durable foundation. On the top side, a gold-plated dual-row surface mount vertical female header is installed, ensuring excellent conductivity and reliable mating with corresponding male connectors.

The bottom side is equipped with two gold-plated single-row surface mount vertical male headers, which interface with the target DIP socket. The DIP connection points utilise wire wrap pins with a 0.64mm square profile, providing a secure and stable connection for through-hole mounting or wire wrapping applications.

Engineered for performance, this adaptor operates reliably across a wide temperature range from -40°C to +130°C, making it suitable for various environments. It is also capable of withstanding PCB reflow processes with a maximum temperature tolerance of +260°C. The assembly adheres to the IPC-A-610 Class II standard, ensuring good workmanship and reliability for commercial electronic products.

With a precise 1.27mm (50 mil) pitch, this dual-row adaptor is perfect for high-density applications. It seamlessly converts from a 20-pin female connector to a 300mil width DIP-20 layout, bridging the gap between surface mount and through-hole technologies. This makes it invaluable for development labs, educational settings, and repair workshops where interface conversion is frequently required.
