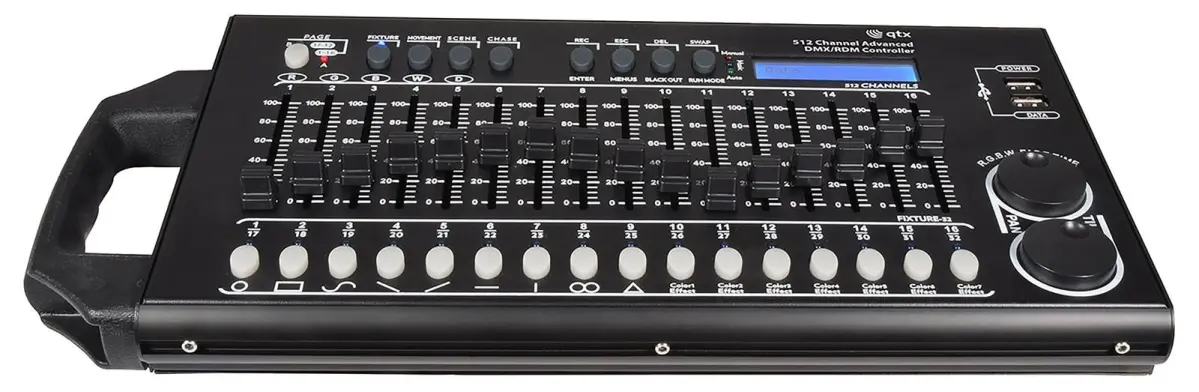

QTX 512 Channel DMX/RDM Lighting Controller

The QTX 512 Channel DMX/RDM Controller is a powerful lighting control solution for professional events, live performances, and installations. With 32 fixtures, each supporting up to 32 channels, this unit provides comprehensive control over a wide range of DMX-compatible devices, including moving heads, LED pars, and dimmer packs.

The controller offers 32 storable scenes and 32 storable chases (each with up to 100 steps) that can be triggered manually, via the built-in microphone for sound activation, or automatically using the adjustable time faders (from 0.1 seconds to 10 minutes). An integrated USB port allows backup of up to 16 banks of DMX settings, scenes, and chases onto an attached USB storage device (max 32GB, FAT32 format).

A 16-channel slider with page up and page down controls provides intuitive hands-on fader control, while separate control wheels enable precise data entry or pan and tilt control for moving heads. The 2-line digital display panel, blackout button, and integrated microphone make live operation straightforward. The hardwearing metal chassis with detachable carry handle ensures durability and portability, making it easy to transport between events.

Key Features

• 512 DMX channels for expansive control
• 32 fixtures, each with 32 channels
• 32 storable scenes and 32 storable chases (up to 100 steps each)
• Music, auto, or manual trigger options for chases
• 16 channel sliders with page up/down
• Separate control wheels for data entry or pan/tilt
• 2-line digital display, blackout button, integrated microphone
• USB backup for up to 16 memory banks (max 32GB FAT32)
• Hardwearing metal chassis with detachable carry handle
• UK mains plug (Type G) included
