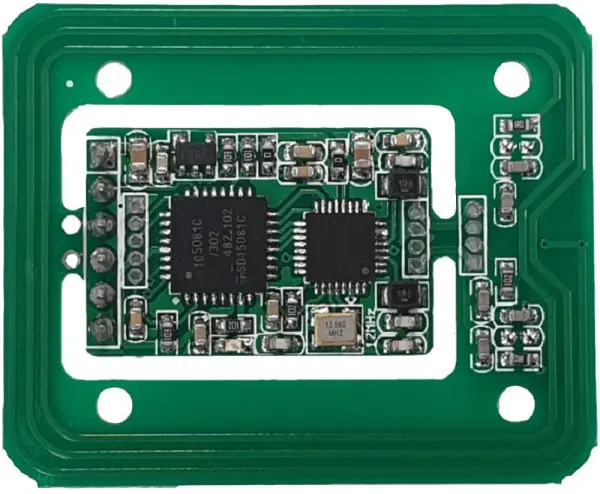

RF Solutions RFID Reader Module 13.56MHz TTL 3V

The RF Solutions RFID Reader Module is a compact and versatile solution for general purpose RFID applications. When a compatible RFID tag is brought within range, the module outputs a TTL serial data stream containing the tag data, making it an ideal choice for projects requiring simple and reliable tag reading.

This module can be used standalone or with the antenna section removed and deployed remotely via cable, offering flexibility in system design. It is compatible with all known ISO/IEC 14443 Type A cards and tags, including popular Mifare one (S50, S70, RC632), NTAG203, and NTAG213. With a read range of up to 100mm, it provides a practical solution for a wide range of access and tracking applications.

Key Features

• Frequency: 13.56MHz
• Interface: TTL data output at 9600bps baud rate
• Communications speed: 106Kbit/s
• Supply voltage: +3.3V DC at 100mA
• Operating temperature: 0 to 80°C
• Breakout antenna included

The module is suitable for asset / stock tagging, access control, payment systems, managing resources, and identification control. Its compact size and simple TTL interface make it easy to integrate into existing designs or new projects, providing a plug-in solution for passive tag interfacing.

Specifications

• Dimensions: 43mm x 33mm x 15mm
• Weight: 5g
• Read Range: Up to 100mm
• Supply Current: 100mA

Whether you are building a custom access system or managing inventory, this RFID reader module offers a dependable and efficient solution for your RFID needs.
