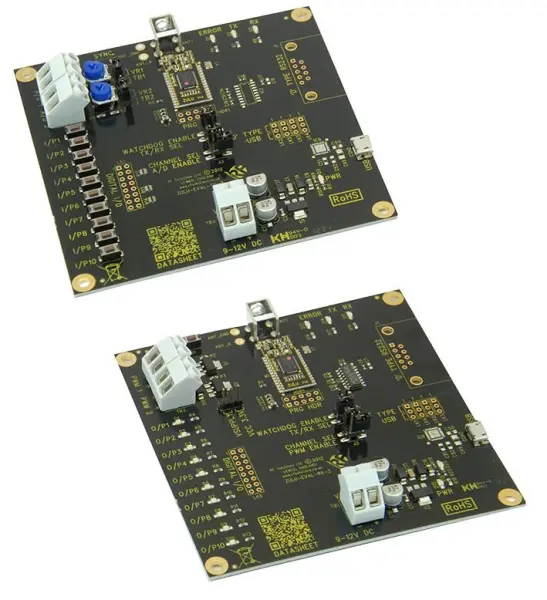

RF Solutions ZULUArduino Telemetry Evaluation Board, 868MHz, 2km Range

The RF Solutions ZULUArduino is a powerful RF telemetry evaluation board that provides a robust radio (modem) link, enabling wireless communication over distances of up to 2 km. This range can be extended further with the use of a suitable antenna. Designed for ease of use, the ZULUArduino handles all RF operations automatically, including error checking, allowing it to be treated as a simple, reliable communications device.

This shield is ready for plug-and-play operation with default settings configured for a serial port at 4800 baud, 8 data bits, no parity, and 1 stop bit, utilising hardware CTS/RTS handshaking. It is also fully compatible with the RF Solutions Blizzard Modem, offering flexibility for various project requirements.

Key Features & Specifications

• Long Range: Provides RF serial data communication up to 2 km.
• Interface: Serial data interface with handshake support for reliable data transfer.
• Host Data Rates: Supports host data rates of up to 38,400 baud.
• RF Data Rates: Capable of RF data rates up to 56 kbps.
• Channel Selection: Features 5 user-selectable channels for flexible operation in crowded RF environments.
• Security: Employs a secure data protocol to protect your transmissions.
• Frequency & Power: Operates at 868 MHz with an output power of 100 mW.
• Power Requirements: Requires an operating voltage of 3.6V, with a typical supply current of 18.5 mA.
• Compact Design: The evaluation board measures 43 mm (H) x 33 mm (W) x 15 mm (D) and weighs just 75 grams, making it ideal for integration into prototypes and final products.

Ideal for developers, engineers, and hobbyists, the ZULUArduino evaluation board simplifies the process of adding long-range wireless telemetry to Arduino-based projects, IoT applications, and industrial monitoring systems.
