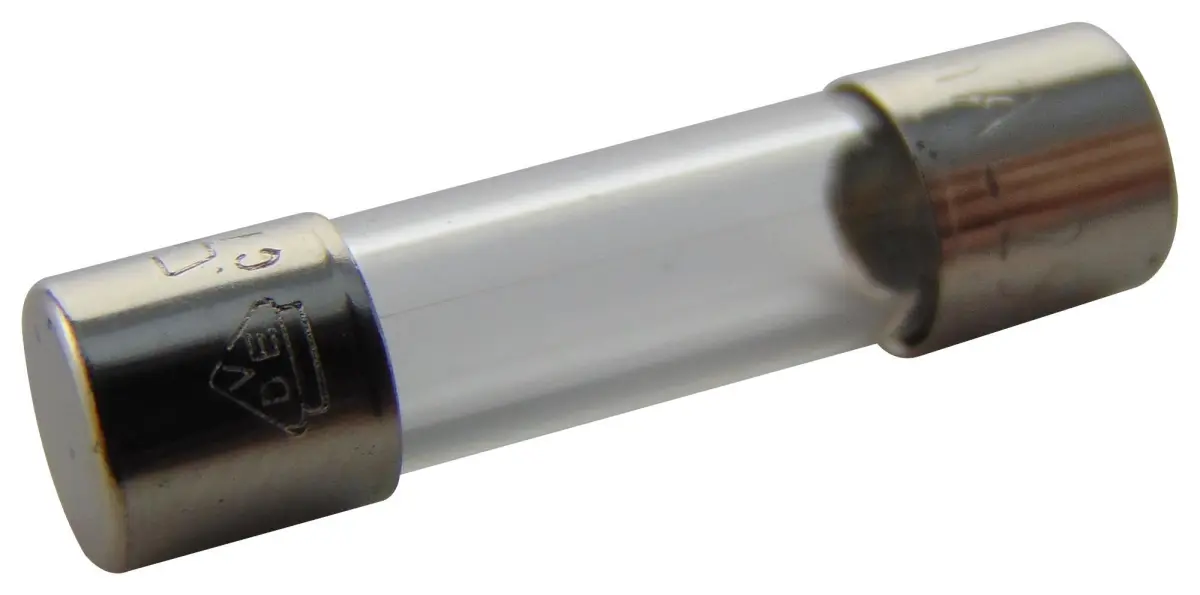

SCHURTER Glass Time Delay Fuse, 5mm x 20mm, 250V, 100mA

The SCHURTER 0034.3107 is a robust, time-delay glass cartridge fuse designed for reliable circuit protection. It is engineered to withstand inrush currents and provides effective anti-surge capabilities, ensuring the safety and longevity of sensitive electronic equipment. This fuse offers primary and secondary low-voltage protection, making it a crucial component in a variety of electrical applications where consistent performance is required.

Constructed with a durable glass tube and nickel-plated copper alloy end caps, this FST-series fuse is built for stable connections and clear visual indication of its status. It features a low breaking capacity and is designed to meet applicable international safety standards, giving you confidence in its compliance and reliability. The device is non-resettable, providing a fail-safe mechanism that protects circuits from overcurrent damage.

Key Specifications

• Fuse Type: Glass Cartridge, Time Delay (Anti-Surge)
• Current Rating: 100mA (0.1A)
• Voltage Rating: 250V AC
• Size: 5mm x 20mm (Metric)
• Maximum Voltage Drop: 2500mV
• Maximum Power Dissipation: 1600mW
• Breaking Capacity: 35A AC
• Ambient Temperature Range: -55°C to +125°C
• Construction: Glass tube with nickel-plated copper alloy end caps

With its wide operating temperature range and precise electrical characteristics, this fuse is an essential choice for engineers and technicians seeking dependable protection for primary circuits in equipment.
