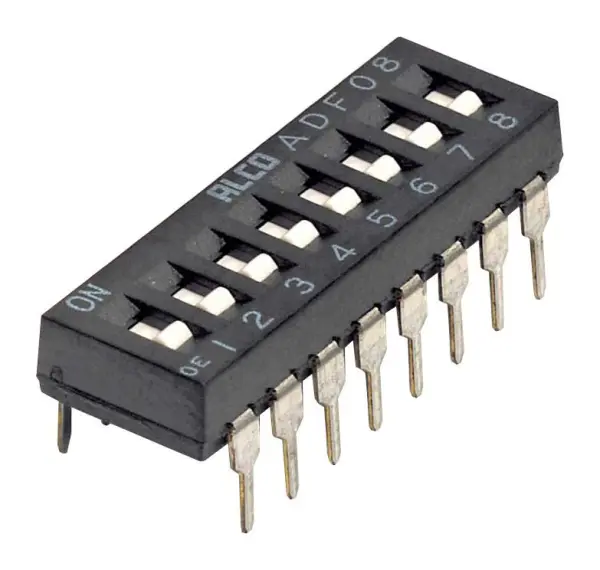

TE Connectivity 8 DIP Slide Actuator Switch, SPST, 24V

The TE Connectivity 8 DIP Slide Actuator Switch is a precision-engineered component designed for integrated circuit configuration, system programming, and hardware control. Featuring a through-hole mounting style, it ensures reliable and stable connection on printed circuit boards, making it an essential part of electronic assemblies and device control panels.

This DIP (Dual In-line Package) switch uses a straightforward slide actuator mechanism, allowing users to easily toggle between different circuit states. With its SPST (Single Pole, Single Throw) contact configuration, it offers simple on/off control for up to eight independent circuits, enabling a wide range of settings and configurations from a single compact unit.

Key Specifications

• High-Quality Construction: Manufactured as part of the reliable ADF Series, it is built to ensure consistent performance and long service life.
• Voltage and Current Rating: Designed for low-power applications, it has a maximum contact voltage rating of 24V DC and a maximum current capacity of 100mA DC.
• Compact Form Factor: With a compact footprint, it is ideal for space-constrained PCB layouts while providing multiple switching functions.
• Versatile Control: The eight individual slide switches allow for extensive binary or digital input configuration, commonly used for setting device addresses, operational modes, or hardware options.

Whether for prototype development, industrial control systems, communication hardware, or consumer electronics, this DIP switch provides a dependable and user-interface-friendly method for making permanent or semi-permanent configuration changes without software.
