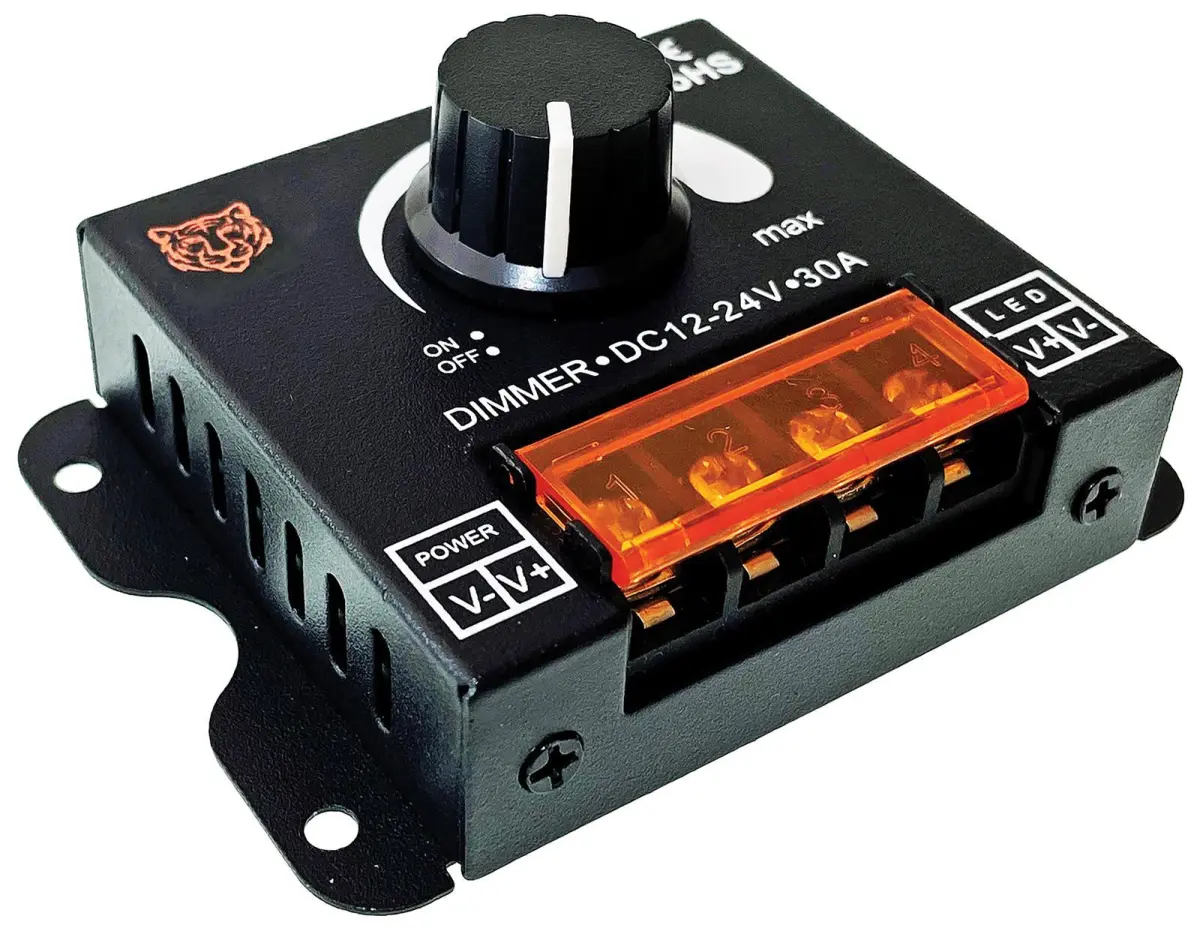

Tiger Power LED Dimming Driver, 12-24V DC, 30A, 720W

The Tiger Power LED Dimming Driver (Model: TGR-DIAL-DIM-30A) provides a robust and user-friendly solution for controlling LED lighting systems. It functions as a dimmer that requires a constant voltage power supply (PSU) to provide the 12V DC or 24V DC input. The output voltage supplied by this unit matches the input voltage, making it essential to select a compatible power supply for your specific LED strip requirements.

This driver features a straightforward analogue dial control, allowing you to simply turn the dial to adjust the brightness of your LED lights smoothly and intuitively. It does not require a battery, drawing its power directly from the connected PSU. The compact dimensions of 86 x 63 x 35 mm make it easy to install in confined spaces, such as behind coving or within junction boxes, for a neat and professional finish.

Key Specifications & Performance

• Input Voltage: 12V DC or 24V DC.
• Output Voltage: Matches the input voltage (12V DC or 24V DC).
• Maximum Output Current: 30A.
• Maximum Output Power: 360W at 12V DC or 720W at 24V DC.
• Output Signal: PWM (Pulse Width Modulation) for efficient and flicker-free dimming.
• Driver Mode: Constant Voltage, ideal for standard LED tape and strip lighting.
• Control Method: Manual rotary dial for brightness adjustment.

Designed for reliability, this dimming driver is part of the Tiger Power Supplies range, engineered for consistent performance in residential and commercial lighting applications. Its durable construction ensures stable operation, helping to extend the lifespan of your connected LED installations by providing clean, controlled power.
