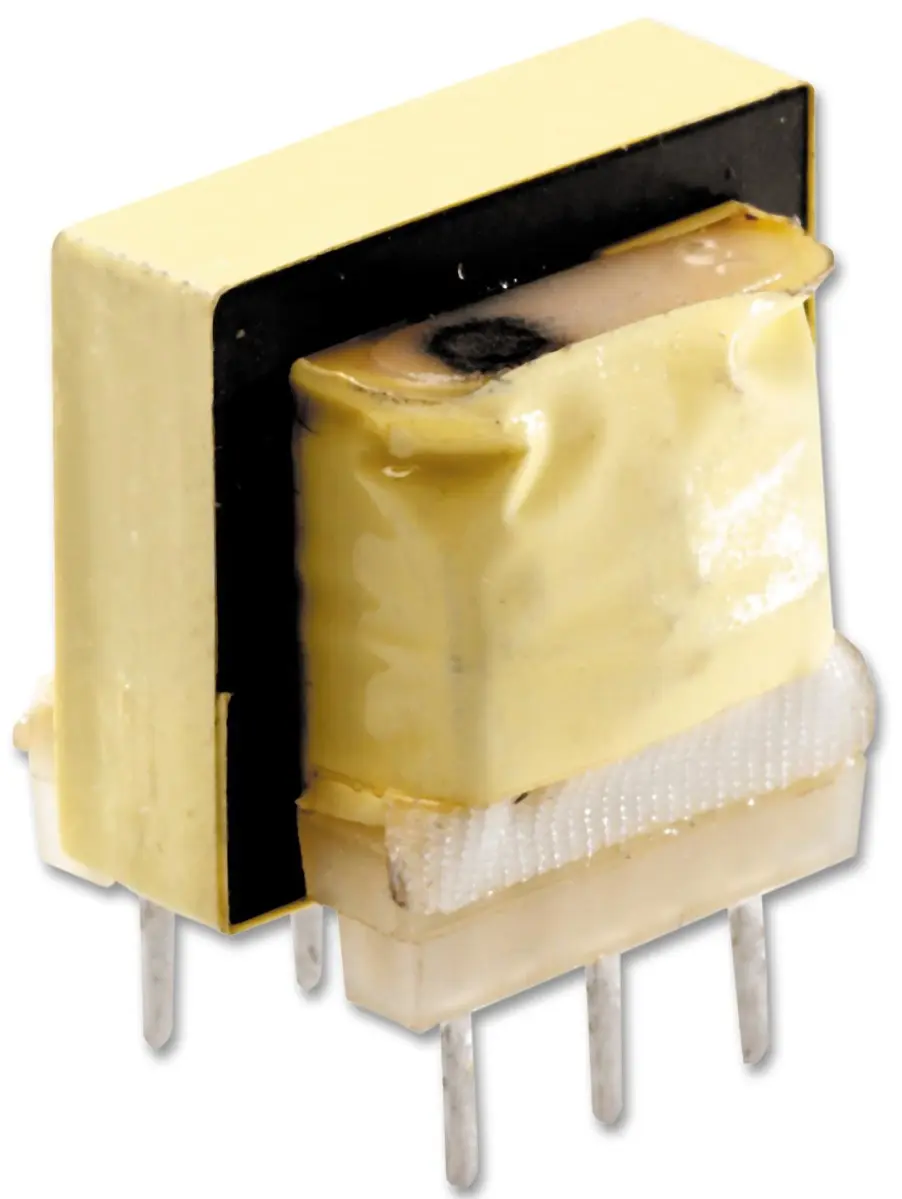

TRIAD MAGNETICS TY-144P Audio Transformer 0.1W

The TRIAD MAGNETICS TY-144P is a high-quality, plug-in PCB-mount audio transformer designed for a broad spectrum of professional and industrial applications. Its robust construction and precise electrical characteristics make it a reliable component for managing audio signals and providing electrical isolation where needed.

This transformer is engineered for versatility, supporting critical functions such as line matching, telephone coupling, and interstage signal transfer. It is also suitable for pulse trigger, driver, output, input, and isolation applications, ensuring compatibility with a wide range of audio and control circuits. The unit operates effectively across a wide frequency range of 200Hz to 15kHz and can withstand operating temperatures from 0°C to 105°C, making it suitable for demanding environments.

Featuring a through-hole mounting design with PC pin terminals, the TY-144P is easy to integrate into printed circuit board (PCB) layouts. Its compact dimensions allow for efficient use of board space without compromising performance. With a 1:1 turns ratio and matched primary and secondary impedances, it provides faithful signal transfer for line-level audio applications.

Key Features & Specifications:

• Broad Application Spectrum: Ideal for audio, industrial, telecommunications, and instrumentation circuits.
• High Isolation Voltage: Provides up to 1.5kV of isolation for enhanced circuit safety and noise reduction.
• Stable Performance: Maintains consistent operation across the specified frequency and temperature ranges.
• Compact PCB Design: Through-hole mounting with a low-profile form factor for straightforward assembly.

Part of the reputable TY Series from TRIAD MAGNETICS, this transformer is a trusted choice for engineers and technicians requiring dependable audio signal conditioning and isolation in their electronic designs.
