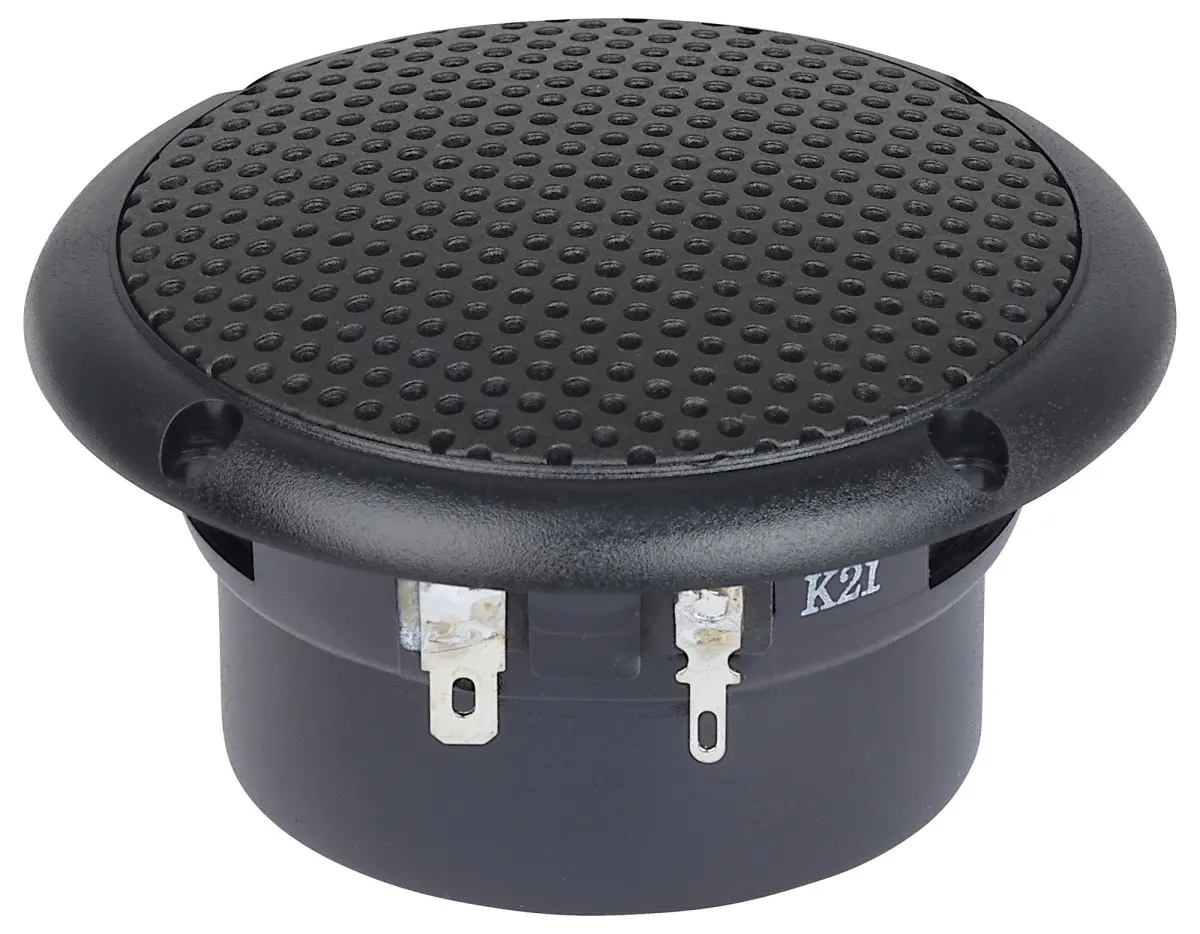

Visaton 80mm (3.3”) Full Range Speaker, 25W, 8 Ohm

The Visaton 80mm (3.3”) Full Range Speaker is a compact and robust audio driver designed for clear, reliable sound reproduction in a variety of applications. Its 25-watt maximum power handling and 8-ohm impedance make it a versatile choice for integration into custom audio projects, marine environments, and outdoor installations where durability is key.

Constructed with a moulded plastic cone and a plastic basket and grille, the driver is lightweight yet resilient. A key feature is its excellent corrosion resistance and waterproof qualities, achieved through an encased magnet and silicon-coated leads. This design ensures consistent performance and longevity even in damp or challenging conditions, providing peace of mind for permanent installations.

The speaker delivers a clear-cut high-range output, contributing to a balanced audio profile. With a broad frequency response from 100Hz to 20kHz, it is capable of reproducing a wide spectrum of sound, making it suitable for full-range audio duties without the need for a separate tweeter. Its high sensitivity of 84dB SPL means it can produce ample volume with relatively low power input.

Technical Specifications at a Glance

• Driver Type: Full-range
• Power Handling: 25W Max / 15W Nominal
• Impedance: 8 Ohm
• Frequency Response: 100Hz - 20kHz
• Resonant Frequency: 158Hz
• Sound Pressure Level (SPL): 84dB
• Cut-out Diameter: 74mm
• Voice Coil Diameter: 20mm
• Terminals: 5.2mm x 0.5mm (+) / 2.8mm x 0.5mm (-)
• Mounting: Panel Mount

Ideal for DIY audio enthusiasts, this speaker is perfect for building custom speakers, upgrading existing systems, or creating audio solutions for boats, caravans, garden installations, and informational systems. Its round shape and standard cut-out size facilitate easy panel mounting into enclosures or surfaces.
