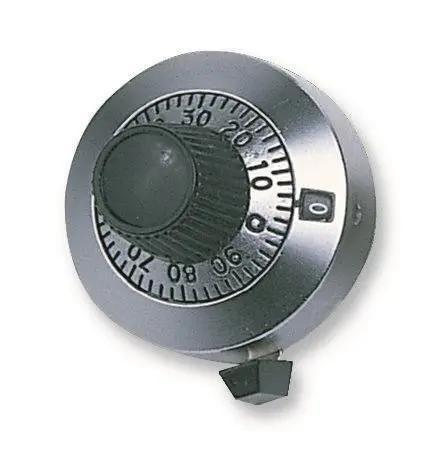

Vishay 11 Series 10-Turn Analog Counting Dial

The Vishay 11 Series Analog Counting Dial is a professional-grade potentiometer dial designed for precise electronic adjustment and control. Featuring a 10-turn mechanism with a total count of 11 turns, this dial offers fine, incremental adjustments, making it perfect for applications where accuracy is paramount.

Its design includes a single counter-type wheel paired with a clearly graduated circular dial. The round vernier scale dial has a diameter of 25.4mm, providing a clear and readable interface. For versatile mounting, it comes with adaptors to fit both 1/4-inch and 1/8-inch shafts, ensuring compatibility with a wide range of equipment.

This counting dial is available in several sophisticated finishes to suit different panel aesthetics and readability needs. Options include a black chrome finish with high-contrast white markings, a brushed chrome finish with black markings, and a satin chrome finish available with either black or white markings.

Constructed from durable materials, this component is built for reliability in demanding environments. Its compact dimensions make it an ideal choice for integration into control panels, test equipment, and other electronic devices where space is at a premium yet precision cannot be compromised.

Key Specifications

• Type: Analog counting dial (potentiometer dial)
• Number of Turns: 10-turn (11-turn total count)
• Dial Diameter: 25.4 mm
• Shaft Adaptors: 1/4-inch and 1/8-inch
• Available Finishes: Black chrome, brushed chrome, satin chrome
• Marking Colours: White or black, depending on finish
• Dimensions: 43 mm (H) x 33 mm (W) x 15 mm (D)
• Weight: 16 grams

With its robust construction and precise engineering, the Vishay 11 Series Counting Dial delivers consistent performance for critical adjustment tasks in professional and industrial settings.
