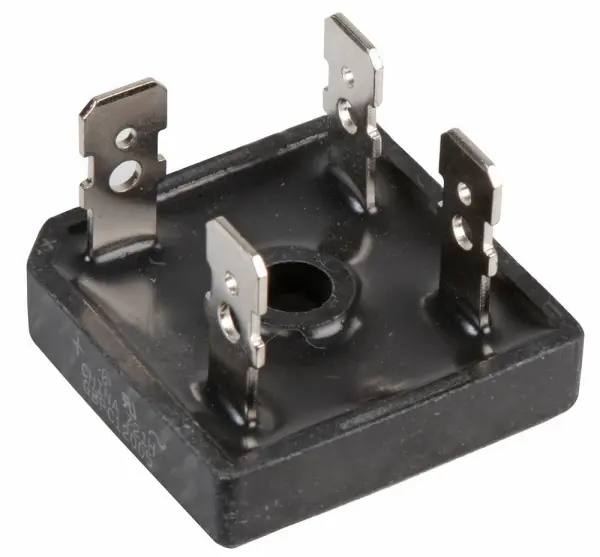

VISHAY Single Phase Bridge Rectifier Module - 200 25

The VISHAY Single Phase Bridge Rectifier Module is a reliable glass-passivated component designed for efficient AC-to-DC power conversion in a wide array of electronic applications. Engineered for general-purpose use in full-wave bridge rectification circuits, this module transforms alternating current into smooth direct current, making it a fundamental part of stable power supplies. Its robust construction ensures dependable performance in demanding environments, from consumer goods to industrial systems.

A key advantage of this rectifier is its high surge current capability, allowing it to withstand sudden current spikes without failure. This is complemented by low thermal resistance, which promotes efficient heat dissipation and contributes to the component's long-term reliability and stable operation, even under continuous load. The module features a quad circuit configuration within a compact, four-pin package, simplifying board layout and installation.

Quality and Compliance

This product holds UL recognition (file number E54214), affirming its compliance with stringent international safety standards. This certification provides assurance of its quality and suitability for use in commercial and industrial products where safety is paramount. The module is designed to operate reliably across a broad temperature range, with a maximum operating temperature of 150°C.

Typical Applications

Its versatility makes it an ideal choice for integration into power supply units, home appliances, office equipment, and industrial automation systems. Whether for a new design or a repair, this bridge rectifier offers a proven solution for converting mains or other AC sources into usable DC power.

Housed in a durable module case style, it is built to last, providing a solid foundation for any circuit requiring efficient and reliable rectification. By choosing this VISHAY®-5

Variant Details

• Size: 200 25
