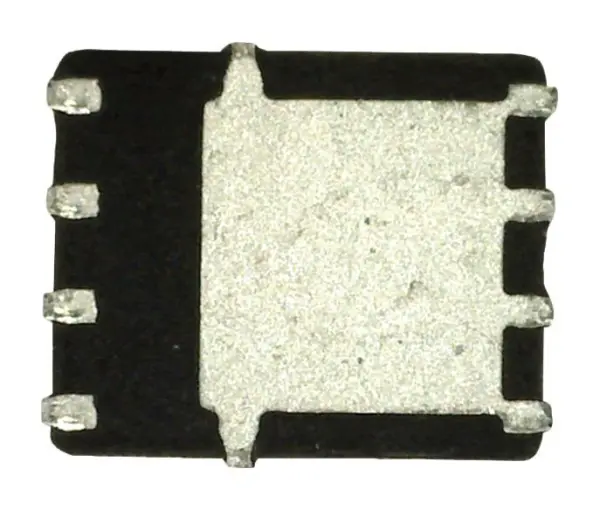

VISHAY SMD P Channel Power MOSFET 30V 50A PowerPAK SO

The VISHAY SMD P Channel Power MOSFET is a high-performance TrenchFET® component designed for efficient power management. Featuring a low on-resistance, this MOSFET ensures minimal voltage drop, enhancing the overall efficiency of your circuit design. It offers an extended VGS maximum rating of 25V, providing a robust safety margin for various switching applications.

This surface-mount device is housed in a PowerPAK SO case style, making it ideal for compact and dense PCB layouts. With a continuous drain current of 50A and a drain source voltage of 30V, it is well-suited for demanding power switching tasks. The device operates reliably up to a maximum temperature of 150°C, ensuring stable performance under thermal stress.

Key Applications

This P Channel MOSFET is perfectly suited for use in battery, load, and adaptor switches. It is also an excellent choice for integration into notebook computers and notebook battery packs, where efficient power handling and space-saving designs are critical.

Features & Specifications

• Channel Type: P Channel
• Drain Source Voltage (Vds): 30V
• Continuous Drain Current (Id): 50A
• Drain Source On State Resistance: 5200µohm
• Rds(on) Test Voltage: 10V
• Gate Source Threshold Voltage Max: 2.5V
• Power Dissipation: 48W
• Extended VGS Max Rating: 25V
• Transistor Case Style: PowerPAK SO
• Transistor Mounting: Surface Mount
• Number of Pins: 8
• Operating Temperature Max: 150°C
• Product Range: TrenchFET®

Delivering reliable and efficient switching, the VISHAY P Channel Power MOSFET is an essential component for modern electronic power systems.
