WAGO 4 Conductor Multi Level Installation Terminal Block, Push In Cage Clamp, 4
WAGO 4-conductor push-in terminal block with CAGE CLAMP®. 3 levels, 32A, 400V rating for fast, secure panel wiring.

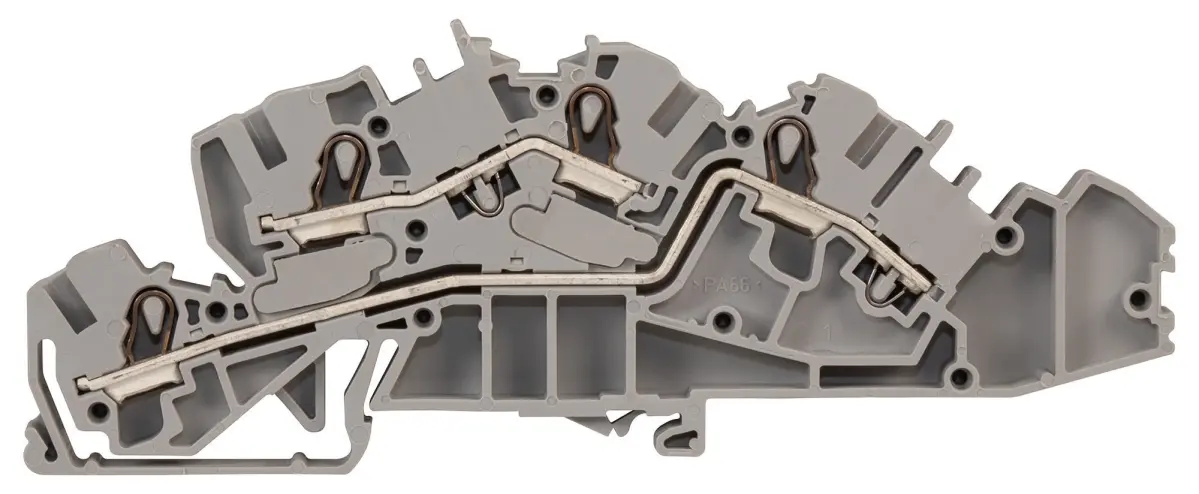

The WAGO 4 Conductor Multi Level Installation Terminal Block is an advanced electrical component designed for efficient and secure multi-level wiring within control panels and distribution boards. Featuring the renowned CAGE CLAMP® technology, it allows for screwless, push-in wire termination, dramatically speeding up the installation process compared to traditional screw terminal blocks. This innovative clamping mechanism ensures a gas-tight, vibration-proof, and corrosion-resistant connection for solid and fine-stranded conductors.
This terminal block is part of the 2005-764x Series and offers 4 positions (4 ways) over 3 distinct wiring levels. This multi-level design maximises space efficiency in crowded enclosures, allowing for organised and compact wiring layouts. It is marked for potential L/L, making it suitable for live conductor connections. The front entry wiring design provides excellent accessibility for connecting and testing wires.
Engineered for reliability, it accommodates a broad cable range from 0.5mm² to 4mm² (20 AWG to 10 AWG), with a nominal cross-section of 4mm². It is rated for 32A and voltages up to 400V, making it suitable for a wide array of industrial and commercial electrical applications where dependable connections are critical. Its robust, fire-retardant polyamide housing is coloured grey for easy identification.
Key Features & Specifications
- Connection Technology: Push-in CAGE CLAMP® for fast, tool-less installation.
- Number of Positions: 4 ways.
- Wiring Levels: 3 levels for space-saving installation.
- Wire Range: 0.5mm² - 4mm² / 20 AWG - 10 AWG.
- Rated Current: 32A.
- Rated Voltage: 400V.
- Potential Marking: L/L.
- Wiring Entry: Front entry.
- Dimensions (H x W x D): 43mm x 33mm x 15mm.
- Weight: 21.5 grams.
This terminal’
