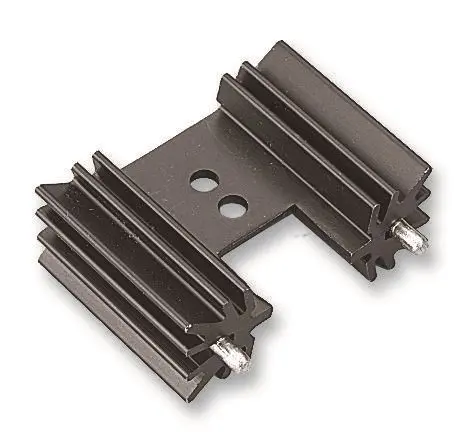

WAKEFIELD THERMAL Heatsink for TO220, 5.8°C/W, Aluminium, 15g

The WAKEFIELD THERMAL 637-10ABPE is a compact, high-efficiency board-level power semiconductor heatsink, specifically designed to cool TO-220 packages. With a low thermal resistance of just 5.8°C/W, it effectively dissipates heat, ensuring reliable performance and longevity of your power components.

This heatsink features a black anodised aluminium finish, which not only enhances thermal performance but also provides a professional appearance. Its space-saving vertical mounting design and wave-solderable pins on 25.4mm (1-inch) centres make it ideal for use on printed circuit boards where weight and board space are at a premium.

Key Features & Benefits

• High thermal efficiency for effective cooling
• Space-saving vertical mounting for PCB orientation
• Wave solderable pins on 25.4mm centres for easy assembly
• Black anodised surface for improved heat radiation
• Lightweight aluminium construction (only 15g) in a compact 43mm x 33mm x 15mm form factor

Whether you are designing power supplies, motor controllers, or other high-power electronic systems, this heatsink provides a reliable and space-efficient cooling solution, helping to maintain optimal operating temperatures and protect your components.
