Whadda Voice Recorder / Playback Kit with Speaker
Record & playback 60s audio with Whadda kit. Onboard mic, 9V DC/battery, adjustable sampling, 500mW speaker.
Record and playback audio with this versatile Voice Recorder / Playback Kit from Whadda UK. Ideal for hobbyists, educators, and makers, this compact module lets you capture and replay audio segments using the onboard microphone. Whether you're adding sound effects to a project or creating an interactive installation, this kit provides a simple and effective solution.
The recorder is powered from a 9V battery or an external 9-12V DC power supply, offering flexible installation options. It includes a 57mm 8Ω speaker, so you have everything you need to get started right out of the box. With an adjustable sampling rate from 5 to 12 kHz, you can balance audio quality against recording duration to suit your specific application.
Key Features
- Onboard microphone for convenient recording
- Records up to 60 seconds of audio (nominal)
- Adjustable sampling rate: 5–12 kHz
- Speaker output: 500 mW max into 8Ω
- Powered by 9V battery or 9–12 VDC PSU
- Low power consumption: max. 150 mA during playback

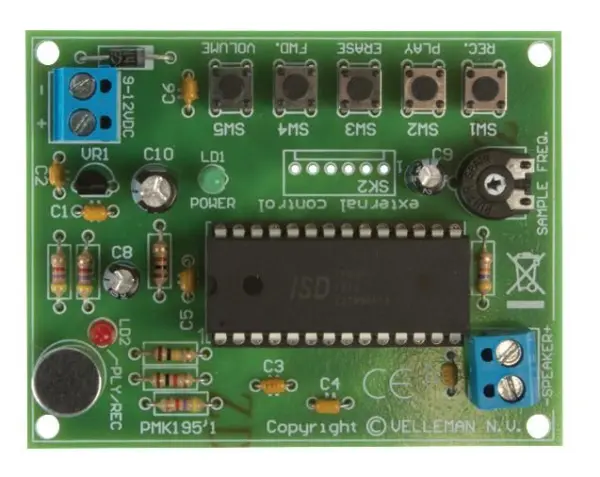

- Compact PCB dimensions: 77 x 60 x 15 mm
This kit is perfect for voice memos, sound effects, announcements, or any creative audio project. Its straightforward design makes it accessible for beginners while still offering the flexibility experienced makers appreciate. Add a new dimension to your electronics projects with this reliable recording and playback module.
Specifications
- Power Supply: 9–12 VDC or 9V battery
- Power Consumption: Max. 150 mA during playback
- Sampling Rate: Adjustable 5–12 kHz
- Speaker Output: 500 mW max into 8Ω
- Nominal Recording Time: 60 seconds
- PCB Dimensions: 77 x 60 x 15 mm
- Speaker Diameter: 57 mm
- Weight: 200 g
