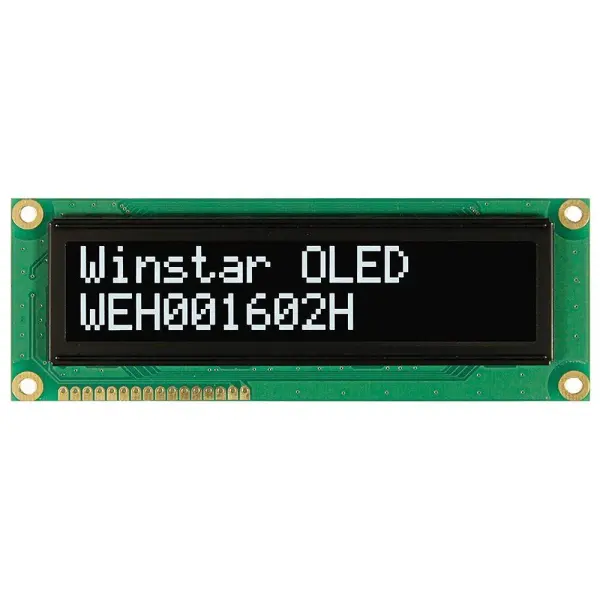

Winstar OLED Display Module, 16x2 Character, White, 5V, Passive Matrix

The Winstar OLED Display Module presents a crisp, 16 character by 2 line passive matrix display with a distinctive white on black appearance. This COG (Chip-On-Glass) constructed module delivers sharp, high-contrast characters that are easily readable, making it an excellent choice for user interfaces in various electronic projects. It utilises a 6800 parallel interface and is driven by a 5V logic supply, ensuring straightforward integration with a wide range of microcontrollers and development boards.

Key Features & Specifications

Featuring a compact module size of 122mm x 44mm and a slim 10mm profile, this display is designed to fit into space-constrained applications. The viewable area measures 98mm x 21mm, with an active display area of 91.14mm x 18.98mm. Each character is clearly defined at 4.74mm x 8.9mm in size, with a comfortable character pitch of 5.76mm x 10.08mm for optimal legibility. The underlying dot matrix uses a 0.90mm x 1.06mm dot size with a 0.96mm x 1.12mm pitch, contributing to the display's sharp image quality.

Engineered for reliability across challenging environments, the module boasts a wide operating temperature range from -40°C to +80°C. It is powered by the WS0010-TX controller IC, which manages the 1/16 duty cycle of the passive matrix OLED panel. The combination of a polarising filter and the inherent properties of OLED technology results in excellent viewing angles and contrast without the need for a backlight, reducing overall power consumption.

Ideal Applications

This display module is perfectly suited for prototyping, embedded systems, and instrumentation where a clear, monochrome readout is required. Its standard interface and voltage requirements make it a versatile component for hobbyists and professional engineers alike, enabling the creation of intuitive interfaces for data loggers, test equipment, smart devices, and custom control panels.
