Winstar OLED Graphic Display Module, 256x64, White
High-resolution 256x64 white OLED module with SSD1322 IC, SPI interface, wide temp range -40 to 80°C.

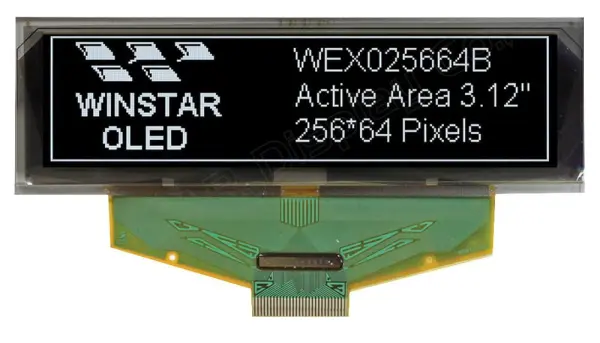

The Winstar WEX025664BWAP3N00000 is a high-performance white/monochrome OLED graphic display module with a resolution of 256x64 pixels. Designed for clear, high-contrast visual output, this passive matrix module delivers crisp images and text, making it suitable for a wide range of industrial and commercial applications.
With a compact module size of 88 x 27.8 x 2.01mm and an active area of 76.77 x 19.17mm, it offers an efficient solution for space-constrained designs. The pixel size is 0.278 x 0.278mm with a pitch of 0.3 x 0.3mm, ensuring sharp and detailed graphics. The display operates with a drive duty of 1/64 and supports 4-bit greyscale, providing smooth visual transitions.
The module is built around the SSD1322 IC (COF), offering reliable performance and compatibility with 6800, 8080, and SPI interfaces. It operates at a logic voltage of 3V, with a serial interface type. The display construction is a module, with an operating temperature range from -40°C to 80°C, making it suitable for demanding environments.
Key Features
- 256x64 resolution for detailed graphics
- White on black display appearance
- Compact module dimensions: 88 x 27.8 x 2.01mm
- Active area: 76.77 x 19.17mm
- Pixel size: 0.278 x 0.278mm
- Pixel pitch: 0.3 x 0.3mm
- Passive matrix display mode
- Monochrome display colour
- Drive duty: 1/64
- 4-bit grey scale
- SSD1322 (COF) IC
- Interface: 6800, 8080, SPI
This OLED module is an excellent choice for applications requiring a compact, high-resolution display with reliable performance across a wide temperature range.
