ABRACON Oscillator, 50ppm, SMD, 3.2mm x 2.5mm, LVCMOS, 3.3V - 12MHz

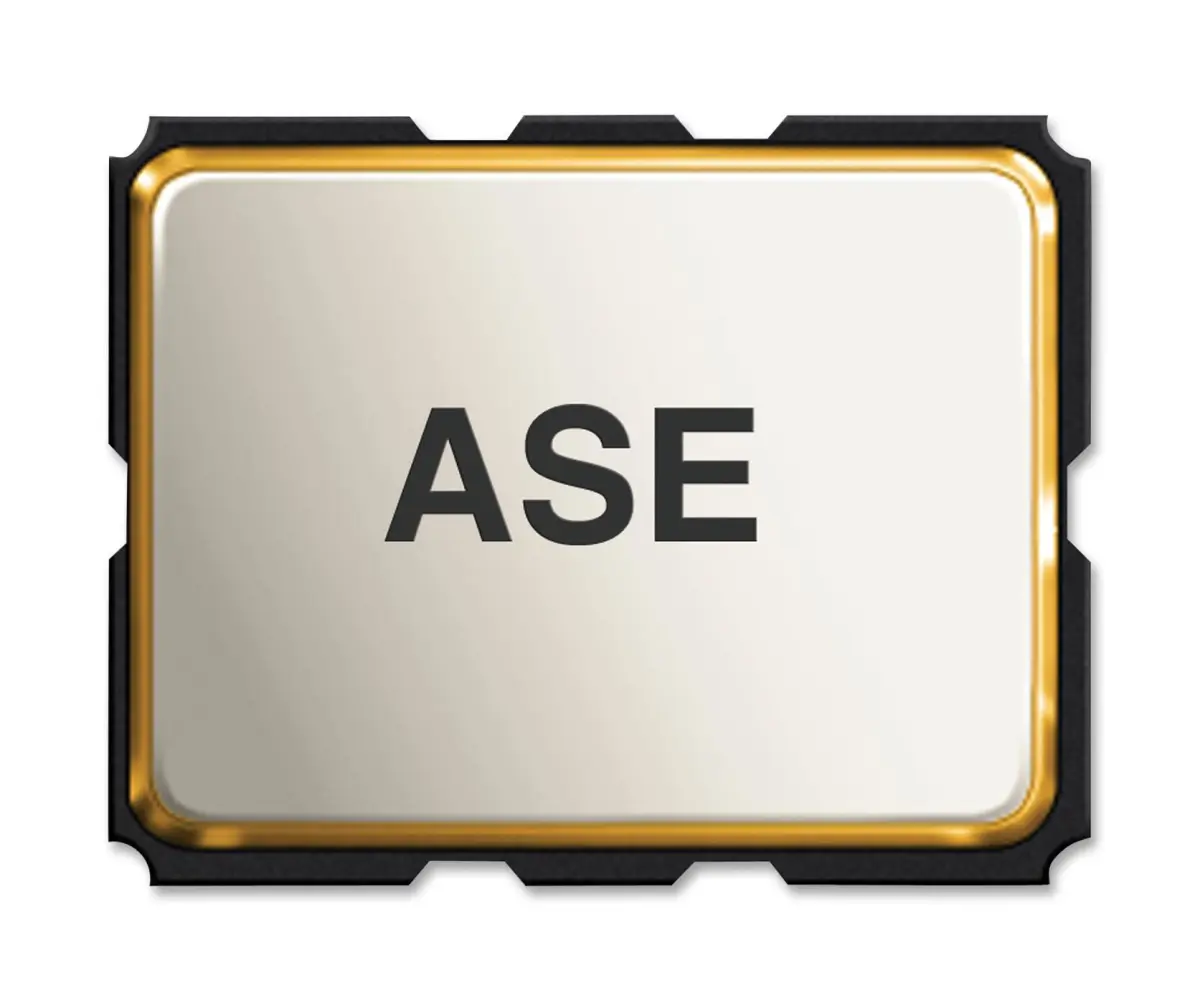

The ABRACON ASE series surface-mount crystal oscillator delivers reliable, precise clock timing in a compact 3.2mm x 2.5mm package. Designed for a wide range of electronic applications, this oscillator operates at a nominal frequency of 8MHz and offers tight frequency stability of ±50ppm, ensuring consistent performance for sensitive circuitry.

Featuring a 3.3V supply voltage and LVCMOS output compatibility, this component integrates seamlessly into modern digital designs. The tri-state function allows for easy output disabling, making it ideal for power management and test applications. With a maximum start-up time of just 2ms and maximum RMS jitter of 5ps, it delivers clean, stable signals for demanding timing requirements.

Engineered for versatility, this oscillator is suitable for reflow soldering profiles, simplifying the manufacturing process. Its low current consumption makes it an energy-efficient choice for battery-powered and portable devices. The wide operating temperature range from -40°C to 85°C ensures reliable operation in diverse environmental conditions.

This oscillator is an excellent choice for clock generation in portable electronics, computer peripherals, communication systems, and wireless devices. Its robust design and consistent performance make it a trusted component for engineers and designers seeking dependable timing solutions.

Key Benefits:

• Compact SMD package (3.2mm x 2.5mm x 1.2mm) for space-constrained designs
• Tri-state function for output control
• Low RMS jitter for signal integrity
• Wide operating temperature range
• Reflow soldering compatible

Variant Details

• Size: 12MHz
