Bentley Security Projects Everytime Timer

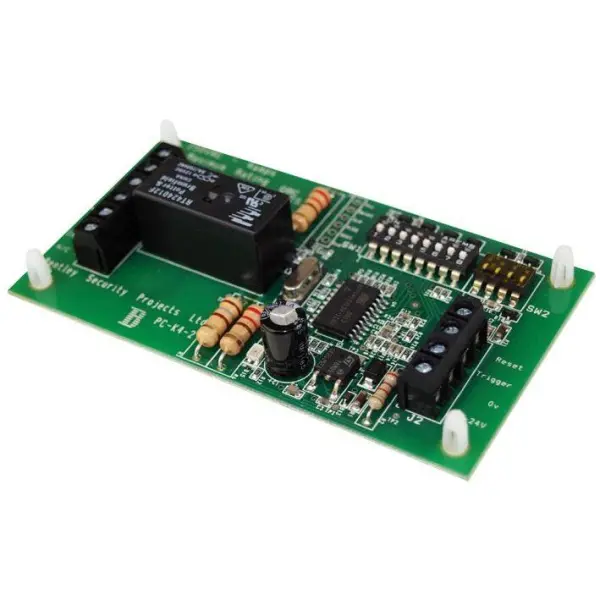

The Bentley Everytime Timer is a digital timer module with a time range from 1 second up to 64 weeks, designed for precision control across a wide range of applications.

The module features two independently configurable timer periods. Timer A defines the action that follows an initial trigger, while Timer B determines what happens after Timer A has completed its cycle. This dual design supports complex sequencing within a single unit.

Operating Modes

• Simple Timer: The relay state changes after a defined period (Time A) once a trigger is applied.
• Cyclic Timer: The relay's 'on' (Time A) and 'off' (Time B) durations are defined separately, suitable for repetitive tasks.
• Trigger Counting: The relay changes state only after a pre-set number of trigger pulses have been received, adding a layer of logic to the timing process.

Power and Electrical Ratings

The timer operates from a DC supply between 12V and 24V. Its input accepts levels below 0.8V or above 4V, with an input voltage range of -4V to 30V. The relay output is rated for 5A at 250V AC or 30V DC.

Environmental Rating

The specified operating temperature range is -10°C to +60°C.

Physical Details

The module weighs 87 gm. Listed dimensions are width 3.3, depth 1.5 and height 4.3.

The module's time range, operating modes and electrical ratings make it suitable for brief, precise intervals as well as long-term, scheduled operations. Review the listed dimensions and weight when planning installation.
