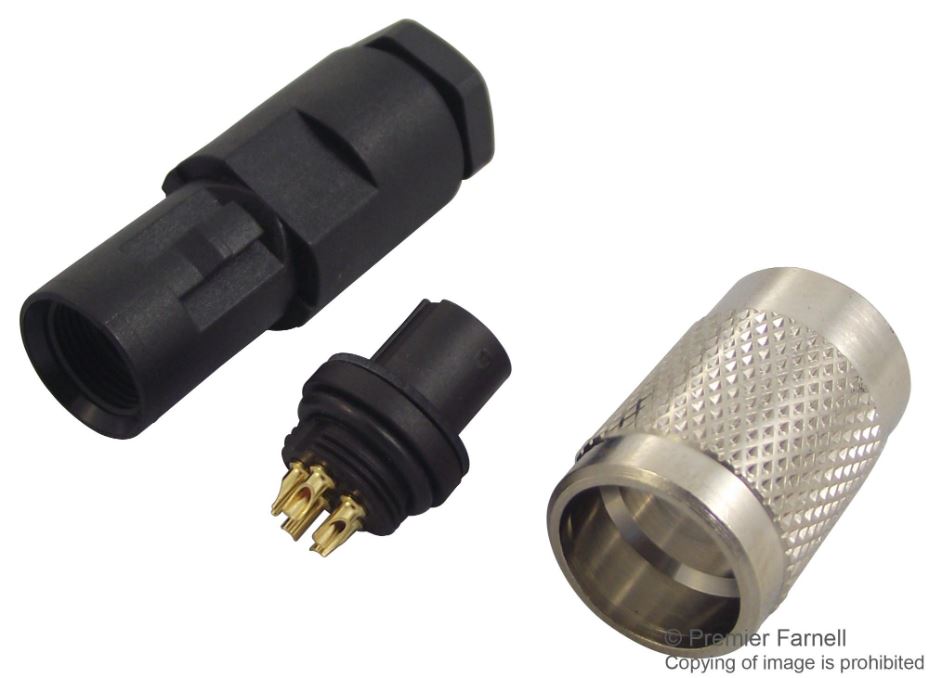

BINDER 712 Series 5-Way Sealed Free Socket Connector, 125V/3A
Industrial-grade 5-way sealed socket connector with gold contacts, IP67 rating & M9 screw locking. Ideal for harsh environments.
The BINDER 712 Series 5-Way Sealed Free Socket Connector is a high-performance, unshielded circular connector designed for demanding industrial applications. This female connector features gold-plated bronze contacts housed in a durable nylon (polyamide) body, ensuring reliable conductivity and mechanical resilience.
Key Features
- Gold-Plated Bronze Contacts: Ensures excellent electrical conductivity and resistance to corrosion.
- PA (UL94V-0) Contact Body & Housing: Provides flame-retardant properties and mechanical durability.
- M9 Screw Locking System: Secures the connection against vibrations and accidental disconnection.
- Solder Termination: Ensures a stable and durable electrical connection.
- IP67 Protection Rating: Offers dust-tight and waterproof capabilities, making it suitable for harsh environments.
- 500+ Mating Cycles: Designed for long-term reliability and repeated use.
Technical Specifications
- Rated Voltage/Current: 125V/3A
- Rated Impulse Voltage: 1500V
- Volume Resistivity: ≤3mΩ
- Wire Compatibility: 24AWG (0.25mm²)
- Cable Outlet: 3.5 to 5mm
Applications
This connector is ideal for use in industrial settings where robust and reliable electrical connections are essential. Its IP67 rating ensures suitability for outdoor and harsh environments.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Shipped within 0-2 business days
- Shipping to Worldwide: 6-7 business days*
- Free Shipping Included
- Industrial electrical connections
- Harsh environment applications
- Outdoor electrical equipment
- Automation systems
- Contact Configuration: 5-Way
- Contact Material: Bronze
- Contact Plating: Gold
- Housing Material: Nylon (Polyamide, UL94V-0)
- Mounting Style: Cable Mount
- Termination: Solder
- Wire Size: 24AWG (0.25mm²)
- Locking Mechanism: M9 Screw Locking System
- Rated Voltage: 125V/3A
- Rated Impulse Voltage: 1500V
- Volume Resistivity: ≤3mΩ
- Mating Cycles: >500
- Protection Rating: IP67
